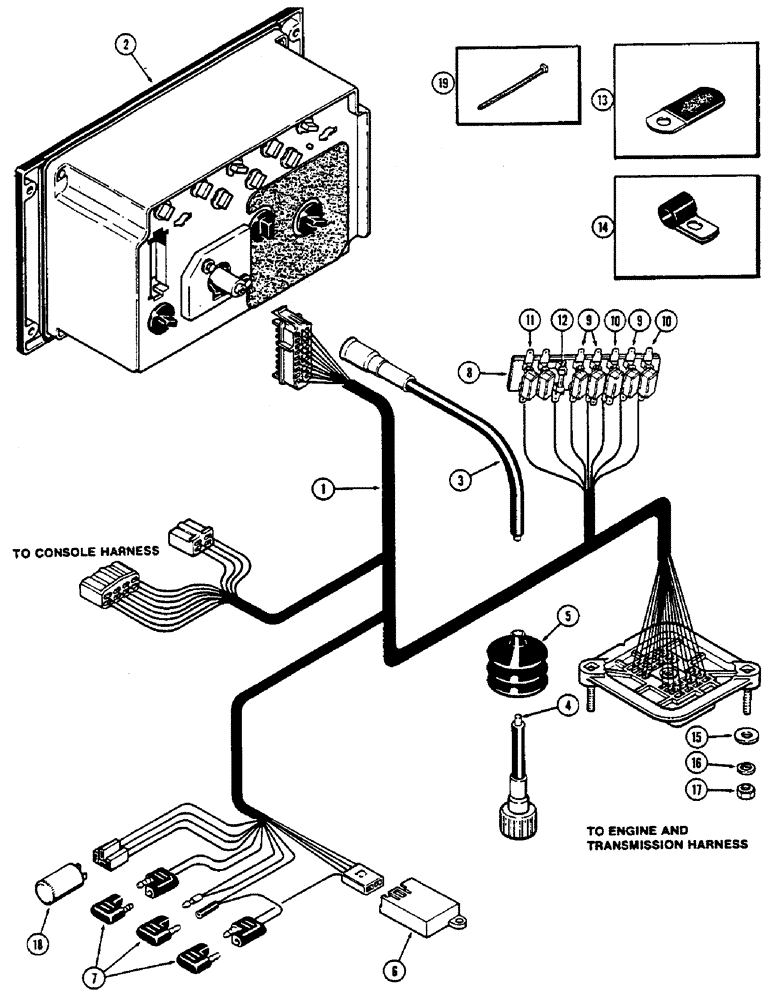

Запчасти Case IH 2390 (4-072) - CLUSTER HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A147204

HARNESS

- instrument cluster

1шт.

2

REF

INSTRUCTION

CLUSTER - instrument (See Figure 4-100)

1шт.

3

A147207

CABLE

ASSEMBLY - tachometer, Includes: Ref. 4

1шт.

4

A24523

KIT

- tachometer cable repair

1шт.

5

A145931

BELLOWS

COVER - tachometer cable seal

1шт.

6

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A147382) (See Figure 4-104)

1шт.

7

A147976

DIODE

- air filter and coolant level (See FIgure 4-104)

3шт.

8

A147180

HOLDER

- fuse (See Figure 4-104)

1шт.

9

A141611

BREAKER

- circuit (15 ampere)

4шт.

10

A141612

BREAKER

- circuit (20 ampere)

2шт.

11

A141614

BREAKER

- circuit (30 ampere)

1шт.

12

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere

1шт.

13

A37179

CLIP

- harness

1шт.

14

49852

PTO SHAFT

- harness

1шт.

15

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

18

A160116

RELAY

- time delay

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, harness

1шт.
