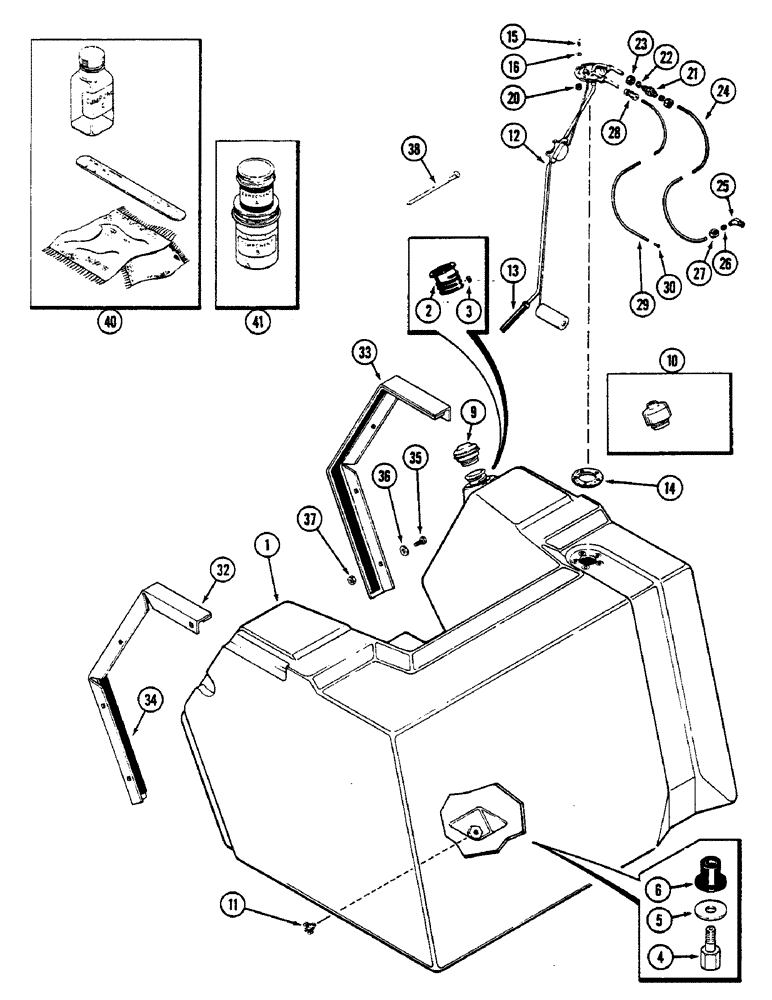

Запчасти Case IH 2390 (3-66) - FUEL TANK AND LINES, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A162753

TANK

- fuel, 85 gallon (321.76 litres) P.I.N. 9913388 and after (Replaces A160505), Includes: Ref. 2 - 6

1шт.

1

REF

INSTRUCTION

TANK - fuel, 85 gallon (321.71 litres) Prior to P.I.N. 9913388 (Order 1-A162753 tank, 1-A163604 SMV emblem and 2-182-540 screw), Includes: Ref. 2 - 6

1шт.

2

A147375

NECK FILLER

INSERT - filler neck

1шт.

3

A161306

LOCK

NUT - filler neck

1шт.

4

A65890

STUD,3/8" - 16 x 1/4" NPT

- drain valve

1шт.

5

A65892

WASHER

- stud

1шт.

6

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

9

A160226

CAP

- filler

1шт.

10

A160381

CAP

- fuel tank filler, with lock (Includes keys) (Replaces A147148)

1шт.

11

A23656

COCK, DRAIN

VALVE - drain

1шт.

12

A161769

TRANSMITTER

UNIT - fuel gauge and input (Replaces A139800), Includes: Ref. 13

1шт.

13

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

14

A11822

GASKET

- unit

1шт.

15

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10 x 1/2" NC pan head

5шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

20

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

21

222-2651

HYD CONNECTOR,17/32"-24

UNION - 3/8" nylon to 3/8" steel tube (Replaces A139967), Includes: Ref. 22 and 23

1шт.

22

222-2611

SLEEVE

- 3/8" tube (9.63 MM)

2шт.

23

222-2601

NUT

NUT - 3/8" tube (9.63 MM)

2шт.

24

A67323

TUBE

- fuel supply, 3/8" OD x 11" long (9365 MM x 3.34 M) nylon

1шт.

25

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45 degree, to hand primer group, Includes: Ref. 26 and 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

28

A139968

FITTING

UNION - 1/4" nylon tube to 1/4" steel tube

1шт.

29

A67322

TUBE

- fuel return, 1/4" OD x 10-1/2' long nylon (6.35 MM x 3.19 M)

1шт.

30

A141160

INSERT

- nylon tube

1шт.

32

A139963

RETAINER

- fuel tank, RH

1шт.

33

A139965

RETAINER

- fuel tank, LH

1шт.

34

A139141

SEAL

- retainer, 1/4 x 1 x 33-1/2" (6.35 x 25.4 x 850.9 MM)

2шт.

35

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

36

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

8шт.

37

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

8шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube

1шт.

40

A44635

KIT

- fuel tank repair (Also order A44636)

1шт.

41

A44636

KIT

- fuel tank repair sealant

1шт.
