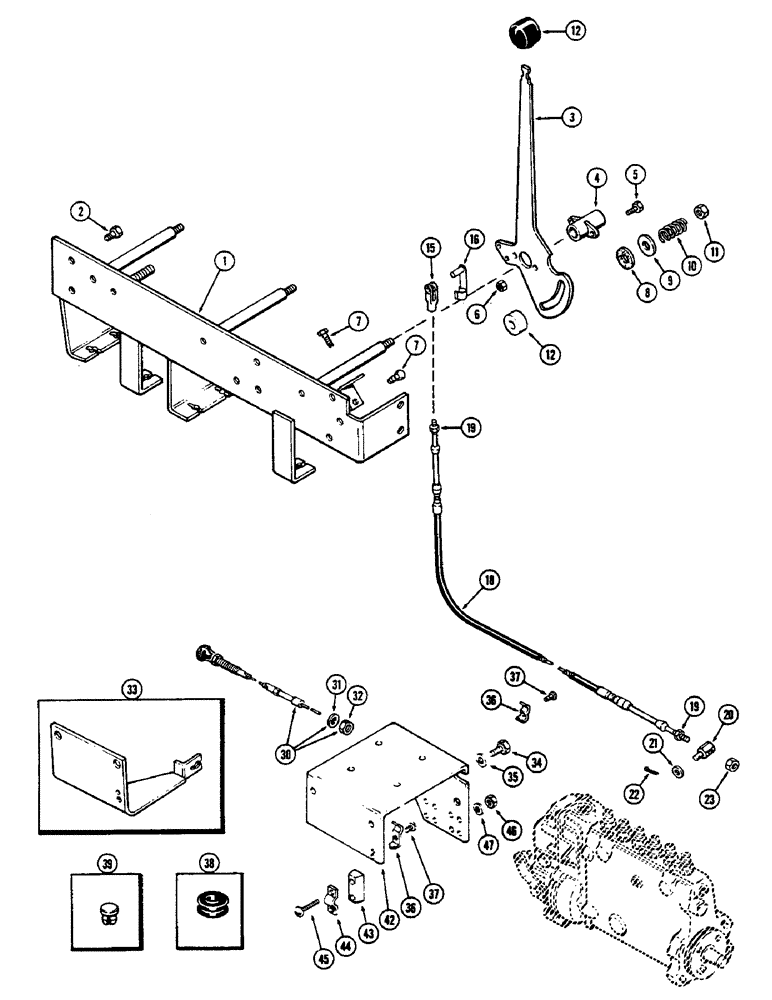

Запчасти Case IH 2390 (3-64) - THROTTLE CONTROLS, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A143809

SUPPORT

PLATE - console support

1шт.

2

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

5шт.

3

A141390

LEVER

- throttle

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever (Replaces A141371)

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5.

2шт.

7

A67294

BOLT

- lever adjusting

2шт.

8

A61069

DISC

- friction

1шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64" (11.11 x 31.75 x 1.98 MM)

9шт.

10

A65583

SPRING

- friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex jam, self locking

1шт.

12

A160622

BUSHING

SPACER - lever

1шт.

13

A139945

KNOB

- lever

1шт.

15

A141286

YOKE

- throttle cable

1шт.

16

A149683

PIN

- spring clevis, 3/16"

1шт.

18

A67296

CABLE

ASSEMBLY - hand throttle, Includes: Ref. 19

1шт.

19

129-27

NUT,Hex, #10 - 32

- #10 NF hex jam

2шт.

20

A165466

BALL JOINT

PIVOT - control cable

1шт.

21

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

1шт.

22

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (1.52 x 12.7 mm) 1/16" x 1/2"

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex keps

1шт.

30

A143982

CABLE

CONTROL - flexible stop, Includes: Ref. 30 and 31

1шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

33

A67297

BRACKET

SUPPORT - stop cable mounting (Prior to P.I.N. 9904295)

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 x 1" NC hex (Grade 5)

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

B51765

CLIP

- stop cable

1шт.

37

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/8" NC round head

1шт.

38

A141389

GROMMET

- control cables

2шт.

39

A67295

PLUG

- control cable

1шт.

42

A160611

BRACKET

SUPPORT - stop cable mounting (P.I.N. 9904295 and after)

1шт.

43

A160612

SPACER

- clamp, throttle cable (P.I.N. 9904295 and after)

1шт.

44

A75815

CLAMP

- throttle cable (P.I.N. 9904295 and after)

1шт.

45

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- #10-24 x 1-3/4" pan head

2шт.

46

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

2шт.

47

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.
