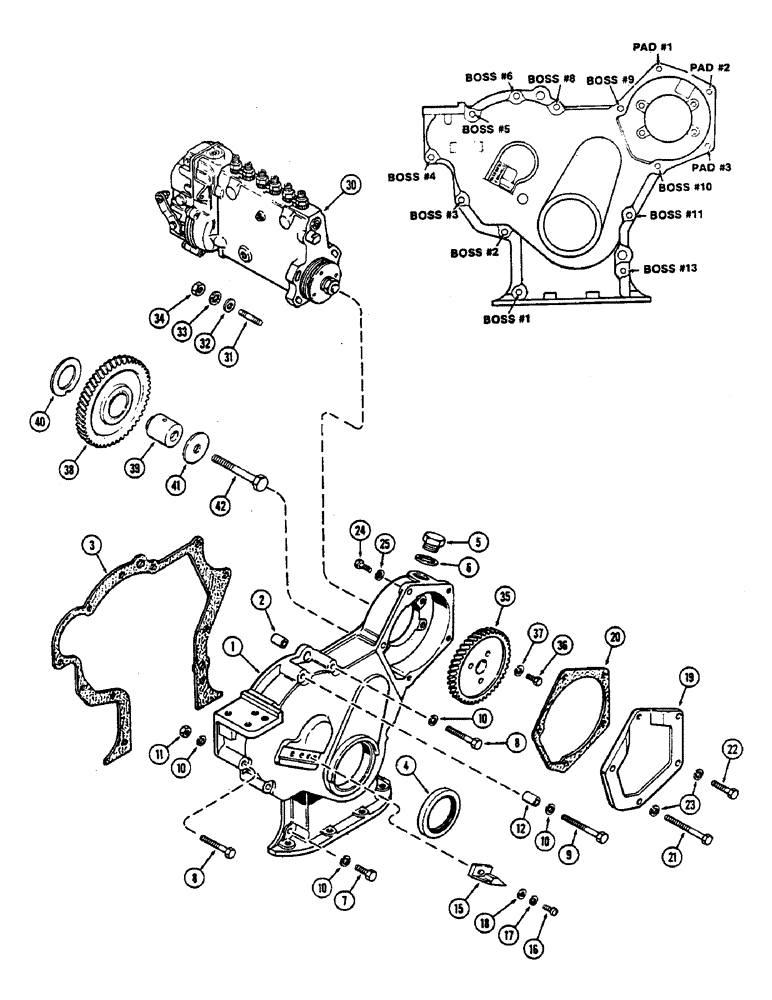

Запчасти Case IH 2390 (3-54) - TIMING GEAR COVER, 504BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A63909

COVER

ASSEMBLY - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- dowel, cover

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- oil, crankshaft front, 2-5/8" x 3-5/8 x 1/2" (66.55 x 91.95 x 12.7 MM)

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Box 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Boss 3 and 8) Hex, 3/8"-16 x 2 1/2", G5

2шт.

9

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 4, 5 and 6) Hex, 3/8"-16 x 3 1/2", G5

3шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

A19774

BUSHING

SPACER - 3/8 x 1" (9.65 x 25.4 MM) (Prybar point)

1шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- #12 x 3/4" NC fillister head slotted

1шт.

17

192-108

LOCK WASHER,#12

WASHER - lock, #12

1шт.

18

195-16

WASHER,#12

- 1/4 x 9/16 x 1/16"

1шт.

19

A61053

COVER

- fuel pump gear

1шт.

20

A58615

GASKET

- cover

1шт.

21

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 9 and 10) Hex, 3/8"-16 x 3 1/2", G5

2шт.

22

A151921

BOLT

- 3/8 x 1-3/4" NC hex (Grade 5) (Drilled) (For pump seal wire) (Pad 2 and 3)

2шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-56), drive

1шт.

31

A59077

STUD

- 3/8" NC x 1-7/8", fuel injection pump drive

3шт.

31

A142092

STUD

- 3/8" NC x 1-7/8" (Drilled) (For pump seal wire), fuel injection pump drive

1шт.

32

A57470

WASHER

- 13/32 x 11/16 x 16 gauge, fuel injection pump drive

4шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Fuel injection pump drive Int Tooth, 3/8"

4шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used with A58689 stud), Fuel injection pump drive 3/8"-16, G5

3шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC hex slotted (Used with A142092 stud), fuel injection pump drive

1шт.

35

A58693

GEAR

- injection pump drive, fuel

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Fuel injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

fuel injection pump drive 3/8"

3шт.

38

A62542

GEAR

- idler, with bushing, fuel injection pump drive

1шт.

39

A58690

SHAFT

- idler gear, fuel injection pump drive

1шт.

40

A58691

WASHER

- thrust, idler shaft, fuel injection pump drive

1шт.

41

A58692

PLATE

- thrust, idler shaft, fuel injection pump drive

1шт.

42

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Fuel injection pump drive Hex, 1/2"-13 x 4 1/4", G5

2шт.
