Запчасти Case IH 2390 (2-52) - ENGINE GASKET KITS, 504BDT, DIESEL ENGINE, VALVE GRIND (02) - ENGINE

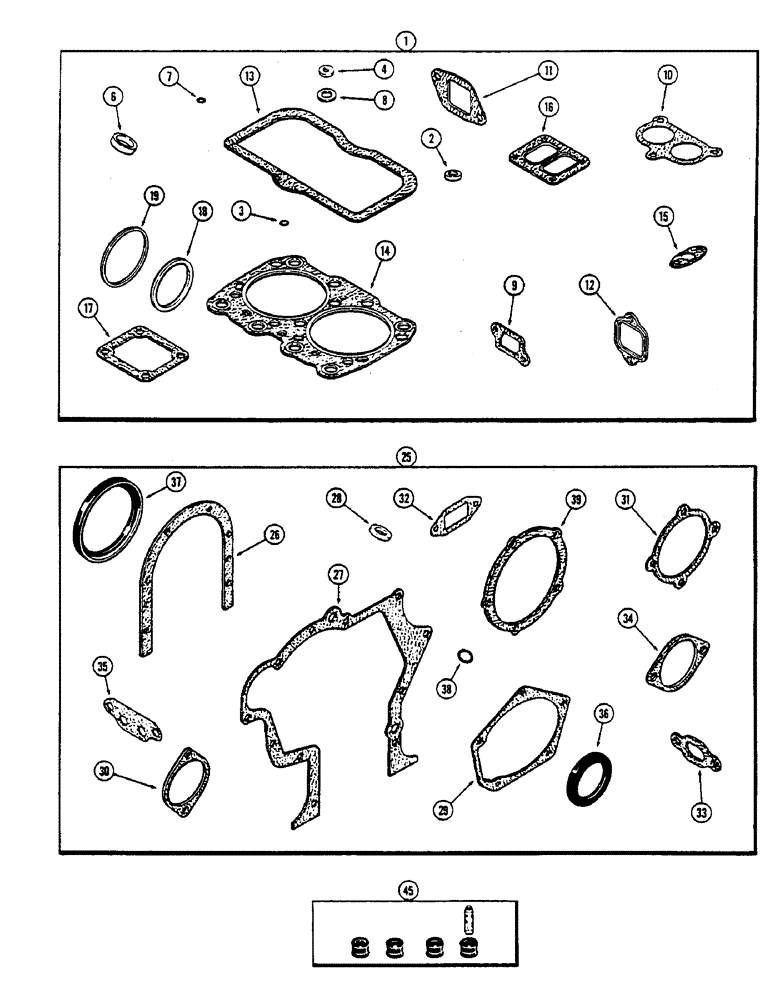

Схема запчастей Case IH 2390 - (2-52) - ENGINE GASKET KITS, 504BDT, DIESEL ENGINE, VALVE GRIND (02) - ENGINE
37
29
10
28
38
30
34
11
31
9
14
4
2
36
19
8
6
3
39
1
25
13
16
12
32
26
35
7
27
15
18
33
45
17

Артикул

Название

Примечание

Количество

1

A151404

GASKET

KIT - valve grind, Includes: Ref. 2 - 19

1шт.

For complete engine overhaul, order 1 -A151404, 1-A44075, 1-A152479, Figure 2-50 and 3-M20614.

1шт.

2

A23684

GASKET

GASKET - valve cover stud, 15/32 x 7/8 x 1/8" (11.94 x 22.35 x 3.05 MM)

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker arm shaft tube, 3/16 x 5/16 x 1/16" (4.83 x 7.87 x 1.52 MM)

3шт.

4

A34133

GASKET

- breather screw, 9/32 x 1/2 x 3/64" (7.11 x 12.7 x 1.27 MM)

3шт.

6

A76640

GASKET

WASHER - nozzle

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See Ref 45)

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube to cover, 11/16 x 1-1/4 x 1/4" (17.53 x 31.75 x 6.35 MM)

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold

6шт.

13

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

14

A138397

CYLINDER HEAD GASKET

- cylinder head

3шт.

15

A58892

GASKET,1.59mm Thk

- oil drain tube, turbocharger

1шт.

16

A58899

GASKET,0.45mm Thk

- turbocharger base

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A138817

RING,2.64mm Thk

SEAL - exhaust manifold

1шт.

19

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

25

A44075

GASKET KIT

- cylinder block, Includes: Ref. 26 - 39

1шт.

For complete engine overhaul, order 1 -A151404, 1-A44075, 1-A152479, Figure 2-50 and 3-M20614.

1шт.

26

A32830

GASKET

- rear seal retainer, cylinder block

1шт.

27

A58612

GASKET

- timing gear cover, cylinder block

1шт.

28

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block

1шт.

29

A58615

GASKET

- fuel pump cover, cylinder block

1шт.

30

A58617

GASKET

- auxiliary drive cover (Not used), cylinder block

1шт.

31

A58646

GASKET

- water pump body, cylinder block

1шт.

32

A58649

GASKET

- water pump body to block, cylinder block

1шт.

33

A58670

GASKET

- oil cooler water opening, cylinder block

1шт.

34

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump (Not used), cylinder block

1шт.

35

A58756

OIL PAN GASKET SET

- oil filter base (Not used), cylinder block

1шт.

36

A62049

OIL SEAL

- crankshaft, front oil, 2-5/8 x 3-5/8 x 1/2" (66.55 x 82.08 x 12.7 MM), cylinder block

1шт.

37

A62050

OIL SEAL

- crankshaft, rear, oil, 4-3/4 x 5-3/4 x 1/2" (120.65 x 146.05 x 12.7 MM), cylinder block

1шт.

38

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base and oil pump, 59/64 x 1-1/8 x 7/64" (23.37 x 28.45 x 2.79 MM), cylinder block

1шт.

39

A76656

GASKET

- water pump body, (Not used), cylinder block

1шт.

45

M20614

SEAL KIT

SET - valve seal (Includes tool and 4 seals), cylinder block

3шт.

Выбрано товаров: 36
