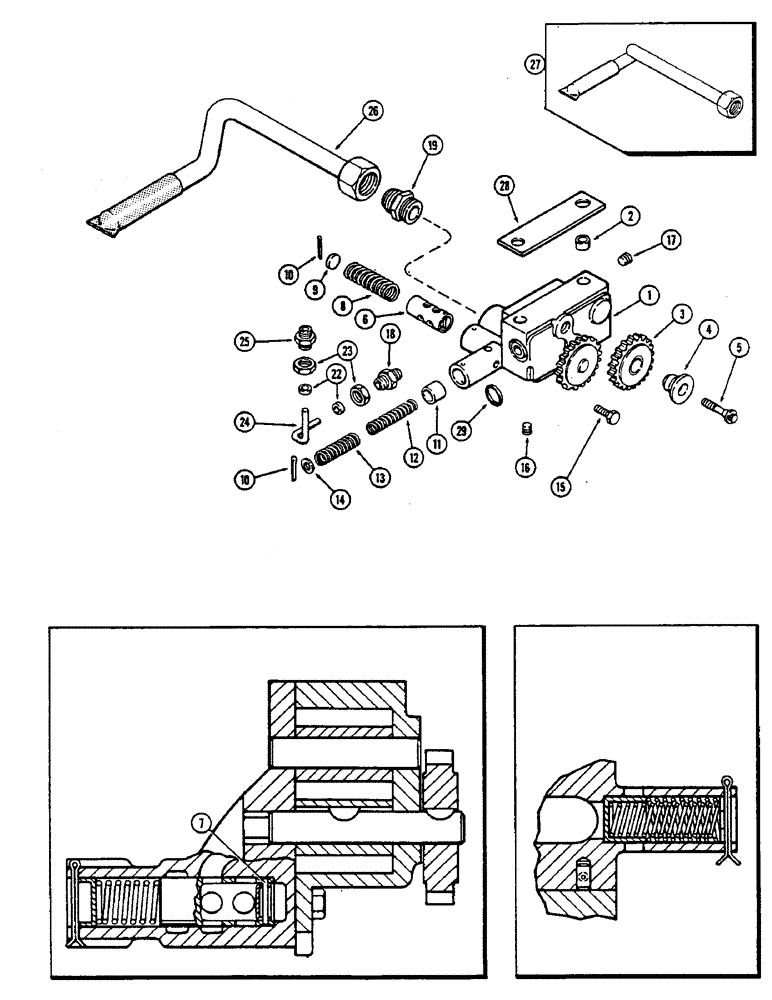

Запчасти Case IH 2390 (2-48) - OIL PUMP, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil, Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- oil pump body

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - idler gear to pump body

1шт.

6

A75286

VALVE

ASSEMBLY - oil pressure relief, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - Spirol, 3/32 x 1" (2.29 x 25.4 MM), Incl in 6

1шт.

8

A63949

SPRING

- oil pump valve

1шт.

9

41-1016

PLUG,Cup, 1"

- 1" cup (25.4 MM)

1шт.

10

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-3/4" (2.29 x 44.45 MM)

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64" free length (78.99 MM)

1шт.

13

A76153

SPRING

- outer, 2-7/16" free length (61.98 MM)

1шт.

14

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" PT square socket head

3шт.

17

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT hex socket head

1шт.

18

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (In pump)

1шт.

19

A142004

CONNECTOR, ELEC

NUT - suction, Serial Range: tube-pump

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

24

A75290

TUBE

- oil pump sensing

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (In block)

1шт.

26

A148678

TUBE

- oil suction, with screen (P.I.N. 8851282 and after)

1шт.

27

A142449

TUBE

- oil suction, with screen (Prior to P.I.N. 8851282)

1шт.

28

A58859

SHIM,.005" Thk

Oil pump (0.127 mm) .005" Thk

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 59/64 x 1-1/8 x 7/64" (23.37 x 28.45 x 2.79 MM)

1шт.
