Запчасти Case IH 2390 (2-40) - CYLINDER BLOCK, 504BDT, DIESEL ENGINE (02) - ENGINE

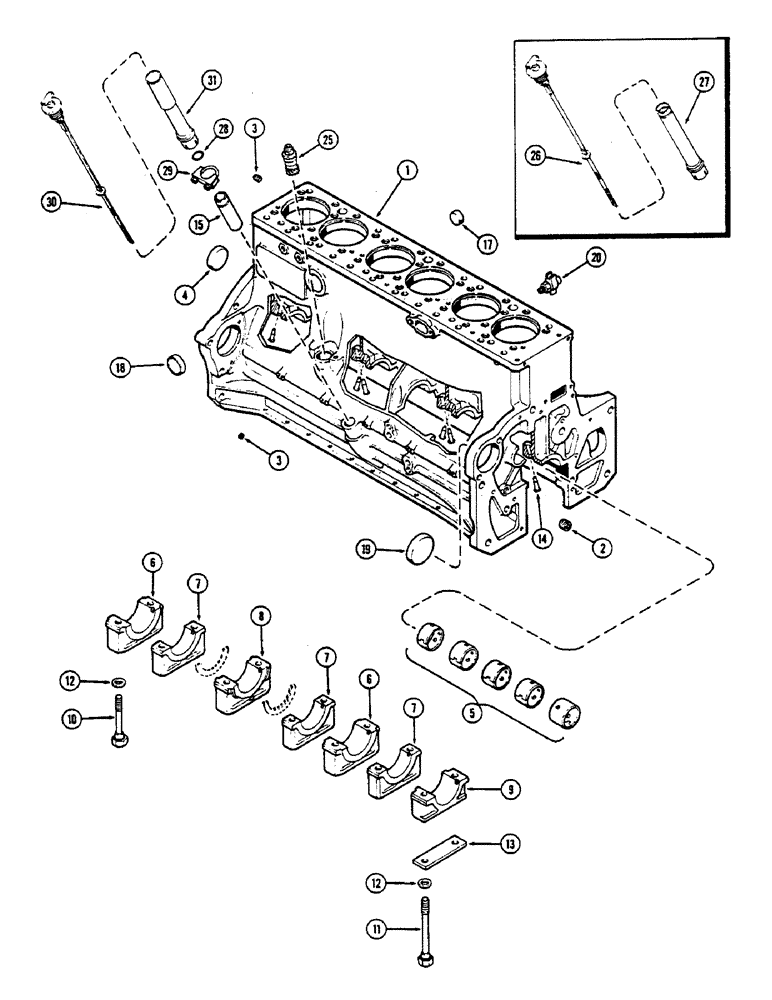

Схема запчастей Case IH 2390 - (2-40) - CYLINDER BLOCK, 504BDT, DIESEL ENGINE (02) - ENGINE
19
10
13
11
18
6
31
3
7
7
6
26
20
1
12
25
29
14
2
4
28
15
8
5
17
7
27
12
3
30
9

Артикул

Название

Примечание

Количество

A46038

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters), Includes: Ref. 1 - 20

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66527), Includes: Ref. 2 - 20

1шт.

1

AR77827

REMAN-BASIC ENGINE

Remanufactured

1шт.

1

AC77827

CORE-BASIC ENGINE

Return Number

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - oil gallery, 3/8" PT hex socket head

4шт.

3

221-1849

PLUG

PLUG - oil gallery, 1/8" PT hex socket head

6шт.

4

A24361

PLUG

PLUG - camshaft hole, 2-3/8" (60.45 MM) cup

1шт.

5

A23544

BUSHING

BUSHING SET - camshaft (See Figure 2-38)

1шт.

6

A154398

BEARING CAP

CAP - main bearing, wide (Replaces A58562)

2шт.

7

A154397

BEARING CAP

CAP - main bearing, narrow (Replaces A58563)

3шт.

8

A154395

CAP

CAP - main bearing, thrust (Replaces A58564)

1шт.

9

A154396

BEARING CAP

CAP - main bearing, front (Replaces A63902)

1шт.

10

A66948

STEP BOLT

BOLT - 5/8 x 4-15/16" NC hex, special

12шт.

11

A66949

STEP BOLT

BOLT - 5/8 x 7-3/16" NC hex, special

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 3/16" (15.75 x 25.4 x 4.83 MM)

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to brg. cap (0.12 mm) .005" Thk

1шт.

14

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

15

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - LH side and rear, 1-3/8" (35.05 MM) cup

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - RH side heater hole, 2" (50.8 MM) cup

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - 3-1/4" (82.55 MM) cup

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

21

A67178

DRIVE

DRIVE - tachometer

1шт.

Picture for Ref. 25 s/b Ref. 21 p/n A167178.

1шт.

26

A66505

DIPSTICK

DIPSTICK - oil level (Prior to P.I.N. 8851282)

1шт.

27

A65778

TUBE

TUBE - oil filler extension (Prior to P.I.N. 8851202)

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - 1-1/8 x 1-3/8 x 1/8" (28.45 x 35.05 x 3.05 MM)

1шт.

29

L47766

CLAMP

CLAMP - hose

1шт.

30

A154242

DIPSTICK

DIPSTICK - oil level (P.I.N. 8851282 and after)

1шт.

31

A153835

TUBE

TUBE - oil filler extension (P.I.N. 8857282 and after)

1шт.

Выбрано товаров: 30
