Запчасти Case IH 2390 (2-38) - CAMSHAFT, 504BDT, DIESEL ENGINE (02) - ENGINE

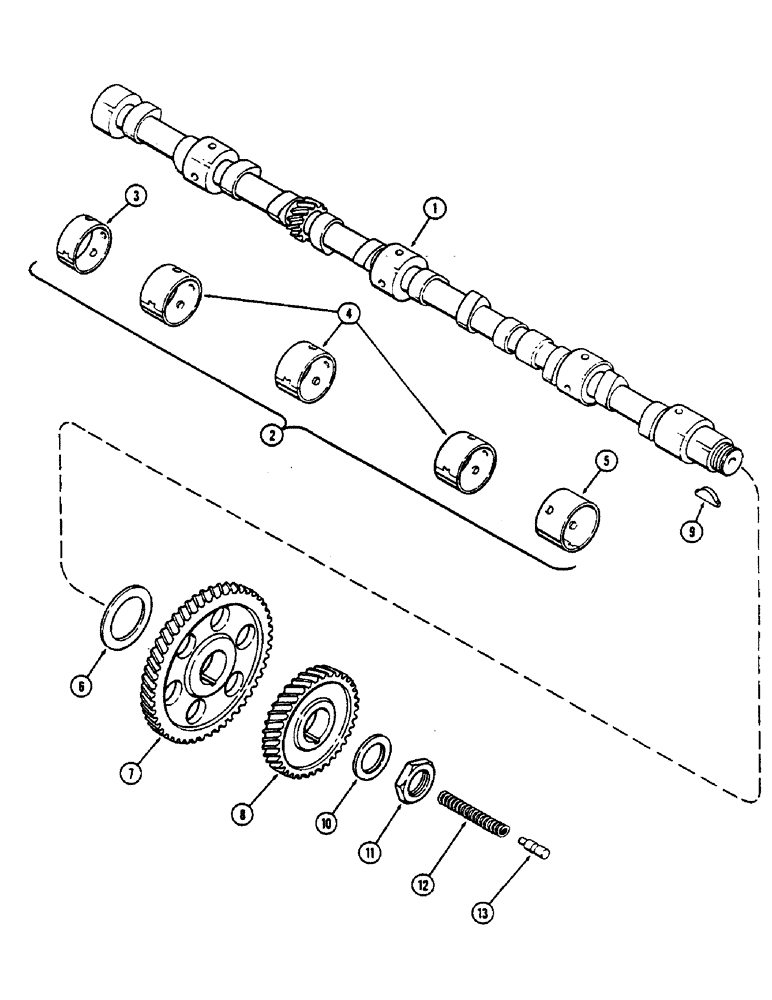

Схема запчастей Case IH 2390 - (2-38) - CAMSHAFT, 504BDT, DIESEL ENGINE (02) - ENGINE
9
10
11
1
7
13
5
3
12
2
6
8
4

Артикул

Название

Примечание

Количество

1

A66124

CAMSHAFT

- engine

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear, 1-5/32" wide (29.46 MM)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate, 1-7/16" wide (36.58 MM)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front, 1-21/32" wide (42.16 MM)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" (7.87 x 33.27 MM) Hi-Pro, gear to camshaft

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 13
