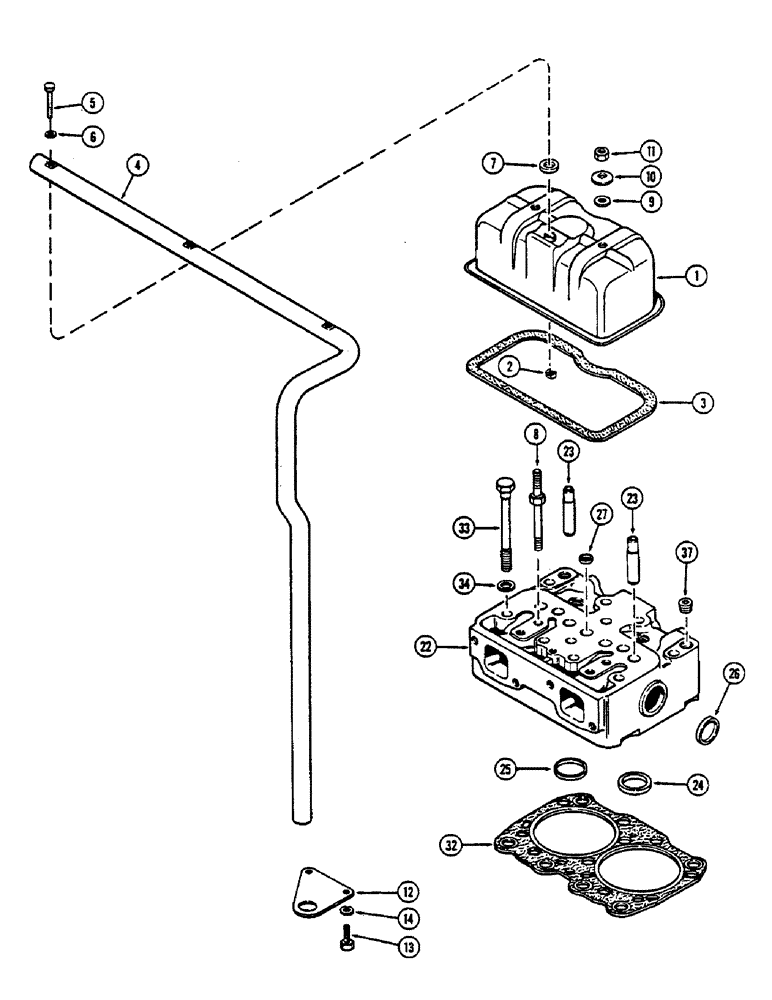

Запчасти Case IH 2390 (2-34) - CYLINDER HEAD AND COVER, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref.

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cover

3шт.

4

A59053

TUBE

TUBE - breather

1шт.

5

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - 1/4 x 2-1/2" NC hex (Grade 5)

3шт.

6

A34133

GASKET

GASKET - breather tube bolt, 9/32 x 1/2 x 3/64" (7.11 x 12.7 x 1.27 MM)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube to cover, 11/16 x 1-1/4 x 1/4" (17.53 x 31.75 x 6.35 MM)

3шт.

8

A67121

STUD

STUD - 7/16" NC x 6-1/16" special

6шт.

9

A23684

GASKET

GASKET - cover stud, 15/32 x 7/8 x 1/8" (11.94 x 22.35 x 3.05 MM)

6шт.

10

A23683

WASHER

WASHER - cover stud, beveled

6шт.

11

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" NC hex sems

2шт.

14

195-25

WASHER,3/8"

WASHER - 13/32 x 13/16 x 1/16" (Used as spacers)

6шт.

22

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting #A138337), Includes: Ref. 23 - 27

3шт.

22

AR152265

REMAN-CYLINDER HEAD

Cylinder Head; For N.A. only

3шт.

22

AC152265

CORE-CYLINDER HEAD

Return number - For N.A. only

3шт.

23

A41783

GUIDE

GUIDES - intake and exhaust valves (Set of 2)

2шт.

24

A66192

INSERT

INSERT - exhaust valve

2шт.

25

A66191

INSERT

INSERT - intake valve

2шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.15 MM) cup type

2шт.

27

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.05 MM) cup type

3шт.

32

A138397

CYLINDER HEAD GASKET

GASKET - cylinder head (With fire rings)

3шт.

33

A76638

BOLT

BOLT - 5/8 x 6" NC hex.

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 3/16" (16.76 x 25.4 x 4.83 MM)

30шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT hex socket head

5шт.
