Запчасти Case IH 2390 (2-28) - VERTICAL MUFFLER, USED ON TRACTOR EQUIPPED WITH LOADER, 504BDT, DIESEL ENGINE (02) - ENGINE

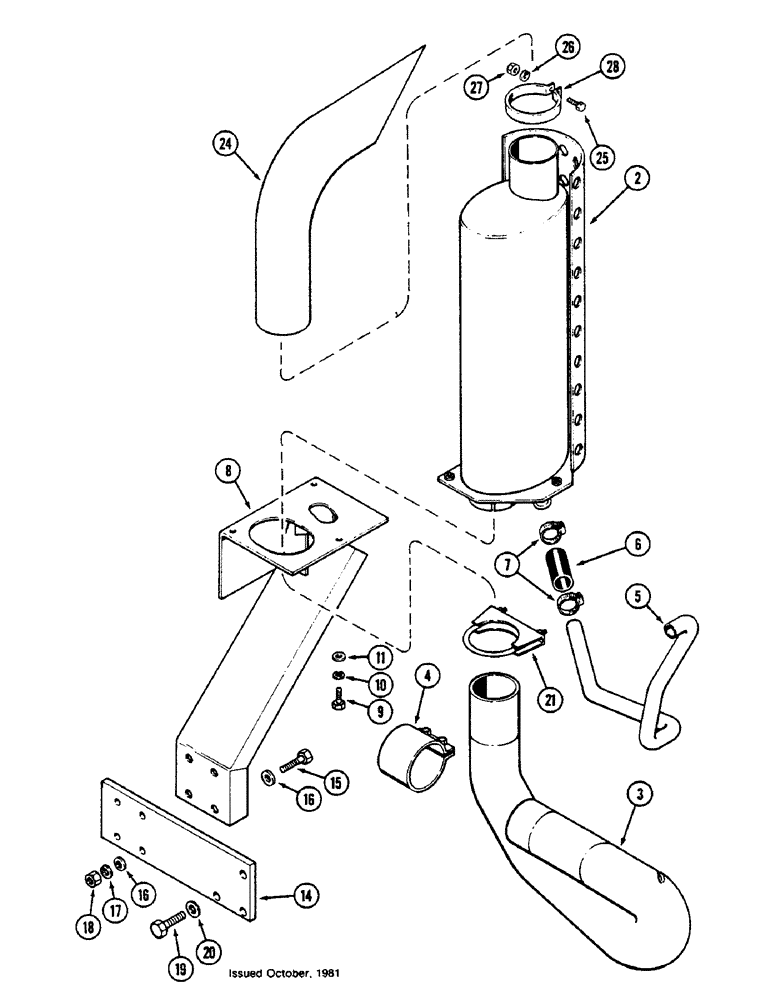

Схема запчастей Case IH 2390 - (2-28) - VERTICAL MUFFLER, USED ON TRACTOR EQUIPPED WITH LOADER, 504BDT, DIESEL ENGINE (02) - ENGINE
18
16
25
7
9
26
11
16
2
21
19
10
8
20
4
15
3
27
5
14
17
6
28
24

Артикул

Название

Примечание

Количество

A162371

ATTACHMENT - vertical exhaust (Replaces A67500 horizontal exhaust system) (Machinery item), Includes: Ref. 2 - 28

1шт.

2

A162977

MUFFLER

- exhaust

1шт.

3

A162261

PIPE

- exhaust

1шт.

4

A149249

ASSEMBLY

CLAMP - exhaust pipe to turbocharger tube

1шт.

5

A162262

PIPE

TUBE - aspirator

1шт.

6

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator tube, Lower 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

8

A162590

BRACKET

- muffler support

1шт.

9

113-2222

CAPSCREW,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - bracket to muffler, 3/8 x 1-1/4" NC hex, black

3шт.

10

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.67 MM)

3шт.

14

A162592

BRACKET

STIFFENER - side rail

2шт.

15

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, Bracket to side rail

4шт.

16

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)

8шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

19

113-2617

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

Hex, 5/8"-11 x 2-1/4", G8, Stiffener to side rail

3шт.

20

A35147

WASHER

- 21/32 x 1-1/8 x 9/64" hardened (16.67 x 28.57 x 3.40 MM)

3шт.

21

A162896

CLAMP

muffler

1шт.

24

A147045

PIPE

- exhaust, extension

1шт.

25

113-2222

CAPSCREW,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, clamp to pipe, 3/8 x 1-1/4" NC hex, black

1шт.

26

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

129-770

NUT,3/8"-16, G5

- 3/8" NC hex, black

1шт.

28

A162895

CLAMP

-, Serial Range: muffler-extension

1шт.

Выбрано товаров: 24
