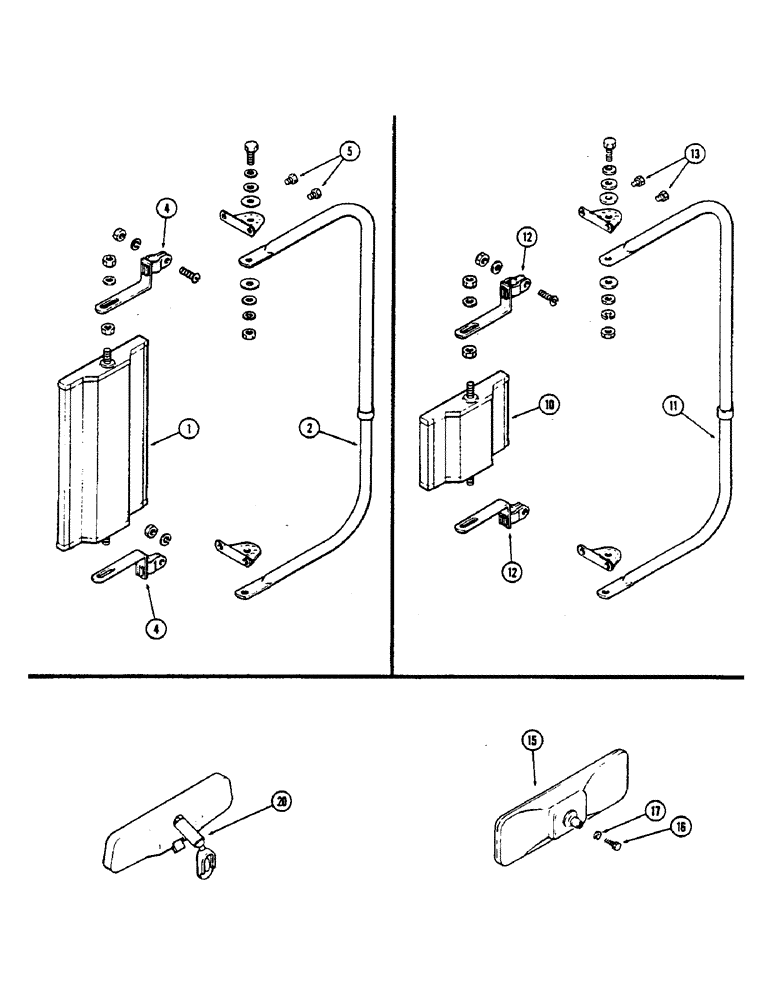

Запчасти Case IH 2390 (9-416) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- mirror (Machine item), Includes: Ref. 1 - 5

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

4

A42767

ADAPTER

- mirror bracket

2шт.

5

187-1009

BOLT

SCREW - 1/4 x 3/8" hex, Shakeproof

4шт.

A61897

KIT

ATTACHMENT - mirror (Machine item), 4 x 6 convex, Includes: Ref. 10 - 13

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away

1шт.

12

A42767

ADAPTER

- mirror bracket

2шт.

13

187-1009

BOLT

SCREW - 1/4 x 3/8" hex, Shakeproof

4шт.

15

F89695

MIRROR

- rear view (Prior to cab serial no. 12023827), inside

1шт.

16

163-18

SCREW,Hex, #10 - 24 x 3/8"

- #10-24 x 3/8" hex, inside rear view

1шт.

17

195-511

WASHER,#10

- 3/16 x 1/2 x 1/16" (4.76 x 12.7 x 1.59 MM), inside rear view

1шт.

20

F64550

MIRROR

- rear view (Cab serial no. 12023827 and after, inside

1шт.
