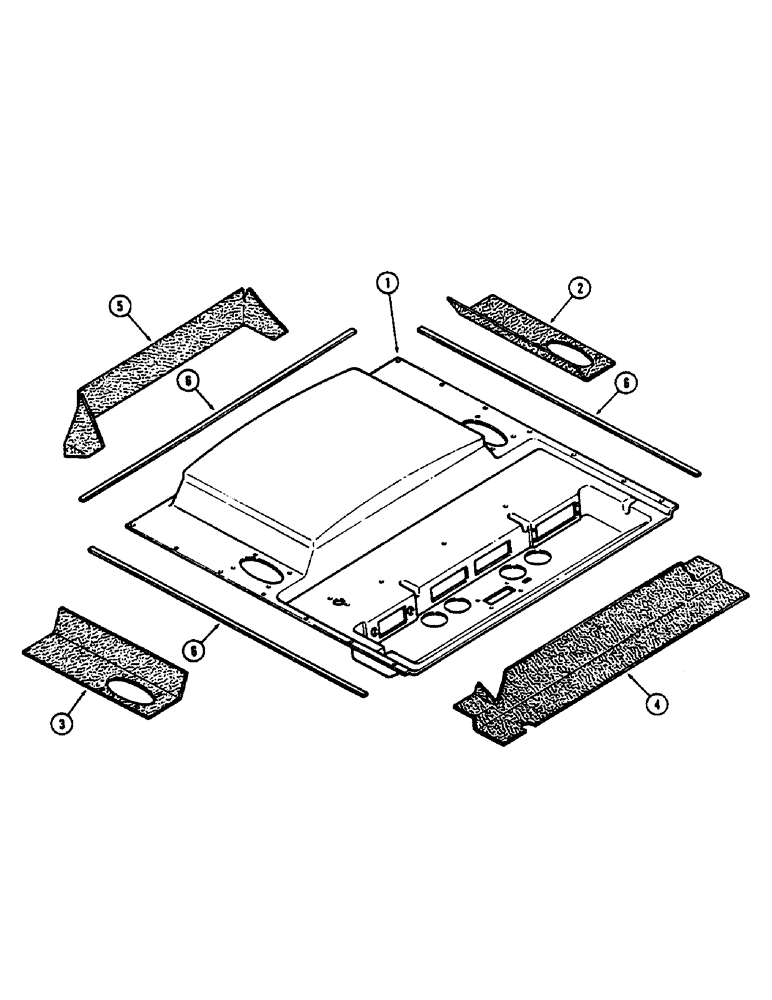

Запчасти Case IH 2390 (9-406) - CAB, HEADLINER NOISE PADS WITH RADIO (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HEADLINER - cab (See Figure 9-378 and 9-380)

1шт.

2

F64245

PAD

- noise damping, LH

1шт.

3

F64246

PAD

- noise damping, RH

1шт.

4

F64247

PAD

- noise damping, front

1шт.

5

F64248

PAD

- noise damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 MM) (Order F64119)

3шт.

F64119

SEALING STRIP

- seal, 100' (30.4 M) roll

1шт.
