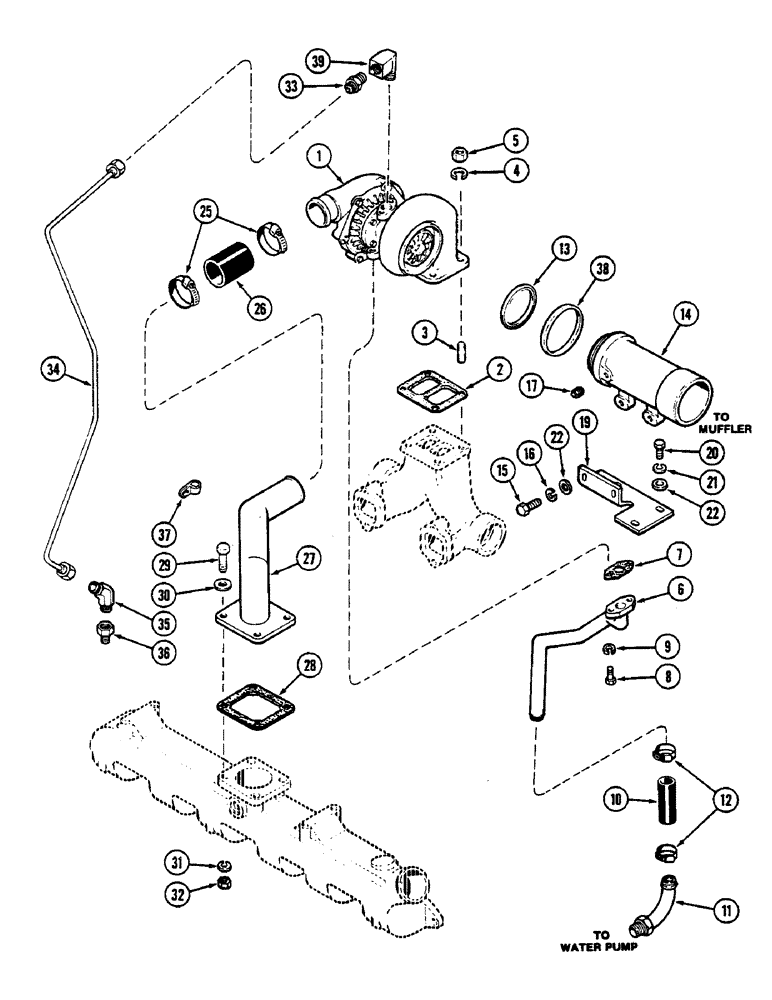

Запчасти Case IH 2390 (2-22) - TURBOCHARGER SYSTEM, 504BDT, DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
TURBOCHARGER - (See Figure 2-24)
1шт.
2
A58899
GASKET,0.45mm Thk
, Serial Range: Turbocharger-manifold
1шт.
3
G102128
BOLT
3/8" NC x 1-17/32"
4шт.
4
92-6
LOCK WASHER,3/8"
4шт.
5
131-903
NUT,3/8"-16
Seezpruf
4шт.
6
A62518
TUBE
Oil drain
1шт.
7
A58892
GASKET,1.59mm Thk
Oil drain tube
1шт.
8
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
9
92-6
LOCK WASHER,3/8"
2шт.
10
A58893
HOSE
, Serial Range: Drain-fitting
1шт.
11
A58897
FITTING
Drain
1шт.
12
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
1-3/16" to 1-3/4" (30.16 x 44.45 mm)
2шт.
13
A138817
RING,2.64mm Thk
SEAL - exhaust
1шт.
14
A152392
FITTING
Exhaust
1шт.
15
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
3шт.
16
92-6
LOCK WASHER,3/8"
3шт.
17
221-12
PLUG,Sq Hd, 1/4"-18
1шт.
19
A152391
BRACKET
Exhaust fitting
1шт.
20
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
95-6
WASHER,3/8"
7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)
2шт.
25
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
(45.97 x 69.85 mm)
2шт.
26
A150449
INTAKE AIR HOSE,2.00" ID x 2.88"
Elbow
1шт.
27
A150450
ELBOW
Air intake, turbocharger
1шт.
28
A58910
GASKET
Air intake elbow
1шт.
29
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
30
95-6
WASHER,3/8"
7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)
4шт.
31
92-6
LOCK WASHER,3/8"
4шт.
32
129-103
NUT,Hex, 3/8" - 16, Gr 5
4шт.
33
222-4027
HYD CONNECTOR,5/8"-24 x 1/4" NPTF
3/8" tube x 3/8" PT
1шт.
34
A153800
TUBE
Oil supply, turbocharger (Replaces A151802)
1шт.
35
222-4095
ELBOW,45 Degree, 5/8"-24 x 1/4" NPT
1шт.
36
221-86
REDUCER,Hex, 3/8" x 1/4" NPT
Bushing
1шт.
37
49845
CLAMP
Oil supply tube
1шт.
38
A152831
SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk
SPACER - turbocharger exhaust (Used as a tool in assembly only)
1шт.
39
217-19
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
1шт.
Выбрано товаров: 36
