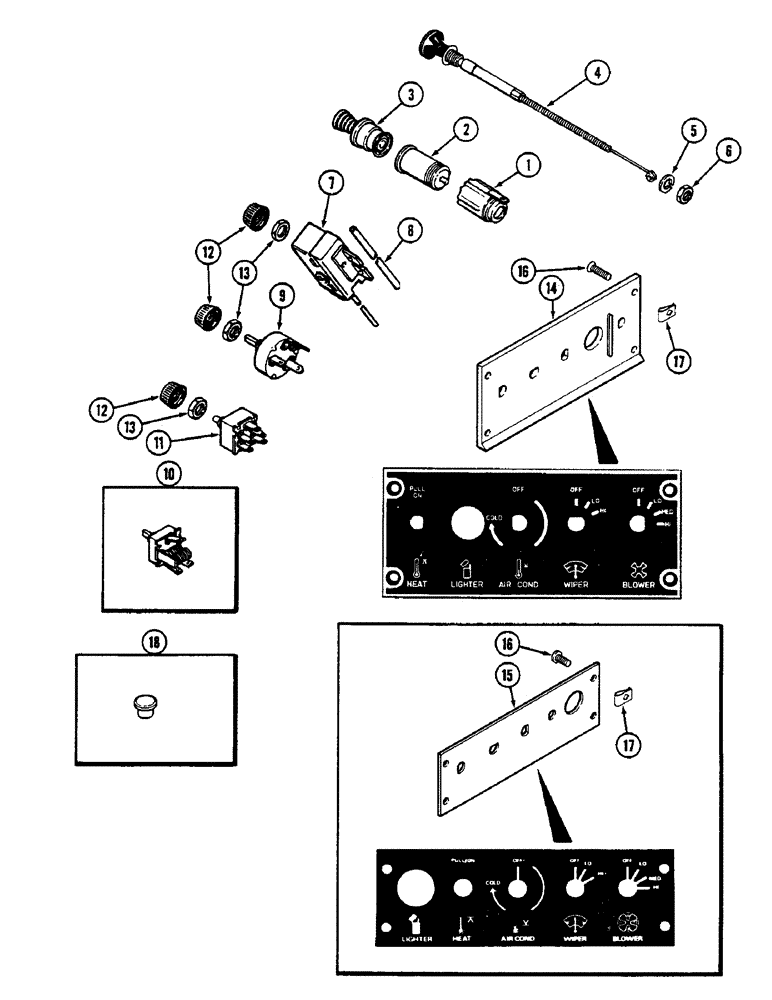

Запчасти Case IH 2390 (9-396) - CAB, CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

2

F63530

SOCKET/RECEPTACLE

SOCKET - lighter

1шт.

3

A143340

SWITCH

ELEMENT - push in, lighter

1шт.

4

A42614

CABLE

ASSEMBLY - heat control, Includes: Ref. 5 and 6

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

7

L73646

SWITCH

- control, temperature

1шт.

8

F64494

TUBE

- shield, thermal, 1/8" ID x 8-1/2" (3.05 x 215.9 MM) (Replaces F63719)

1шт.

9

F43359

SWITCH

- wiper motor

1шт.

10

F63866

SWITCH

- blower (Prior to cab serial no. 12013067)

1шт.

11

A42622

SWITCH

- blower (Cab serial no. 12013067 and after)

1шт.

12

A42578

KNOB

- control switch

3шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" NF jam, switch mounting

3шт.

14

F64503

PANEL

- control (Cab serial no. 12050251 and after)

1шт.

15

F63875

PANEL

- control (Prior to cab serial no. 12050251)

1шт.

16

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" Phillips head (Replaces 182-541)

4шт.

17

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

18

353-403

PLUG,Dome, .437" hole, Nylon

(11 mm) Dome, .437" hole, Nylon

1шт.

18

353-402

PLUG,Dome, .375" hole, Nylon

(9.65 mm) Dome, .375" hole, Nylon

1шт.
