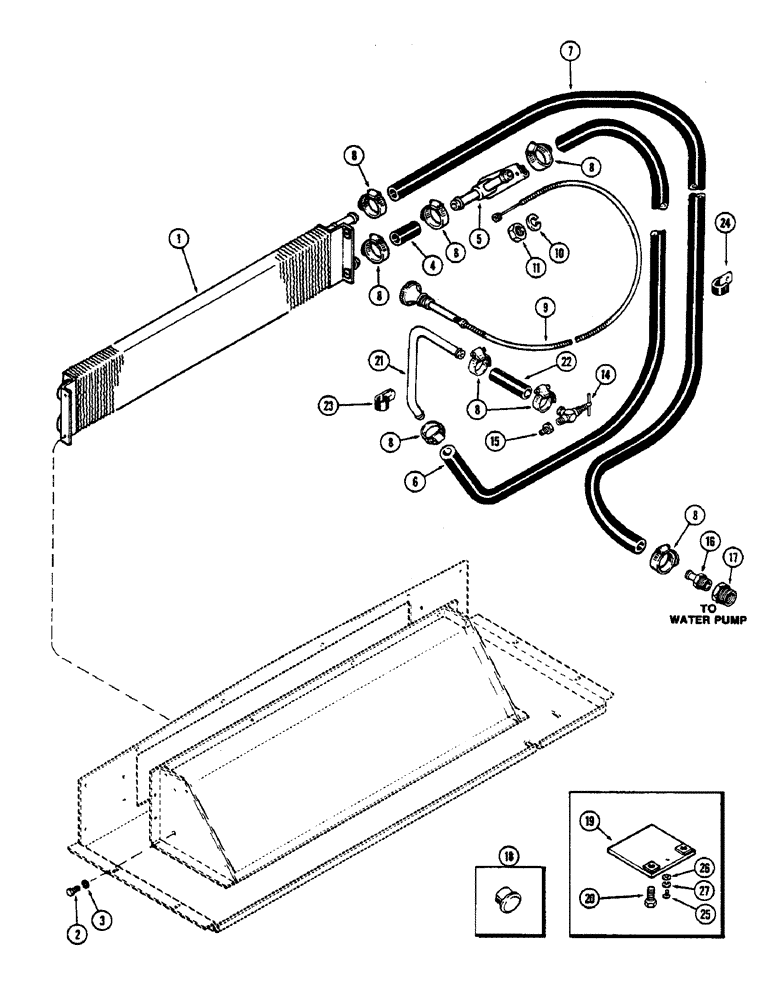

Запчасти Case IH 2390 (9-388) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, black 2" (50.8 MM) (Order A42610)

1шт.

5

F63865

VALVE

- control, heat

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, black 77" (1955.8 MM) (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, black with red, 81" (2057.4 MM) (Order A42610)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/16" (14.22 x 26.92 MM)

8шт.

9

A42614

CABLE

ASSEMBLY - heat control, Includes: Ref. 10 and 11

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50' roll (15.75 x 25.4 MM x 1524.0 M) (Cut to desired length)

1шт.

14

A16764

VALVE

- shut off

1шт.

15

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 x 3/8"

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump

1шт.

17

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4 x 1/2" (19.5 x 12.7 MM)

1шт.

18

353-496

PLUG

- 1" ID Heyco

2шт.

19

F98190

PLATE

- hose support (Order F98238)

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

A149952

TUBE

- heater hose

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater 3-1/2" (88.9 MM) long (Order A42610)

1шт.

23

49885

CLAMP

- tube 5/8" (15.88 MM) ID

2шт.

24

A160691

CLAMP

- tube 3/4" (19.05 MM) ID

1шт.

25

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - self-tapping, #10 x 1/4" round head

1шт.

26

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
