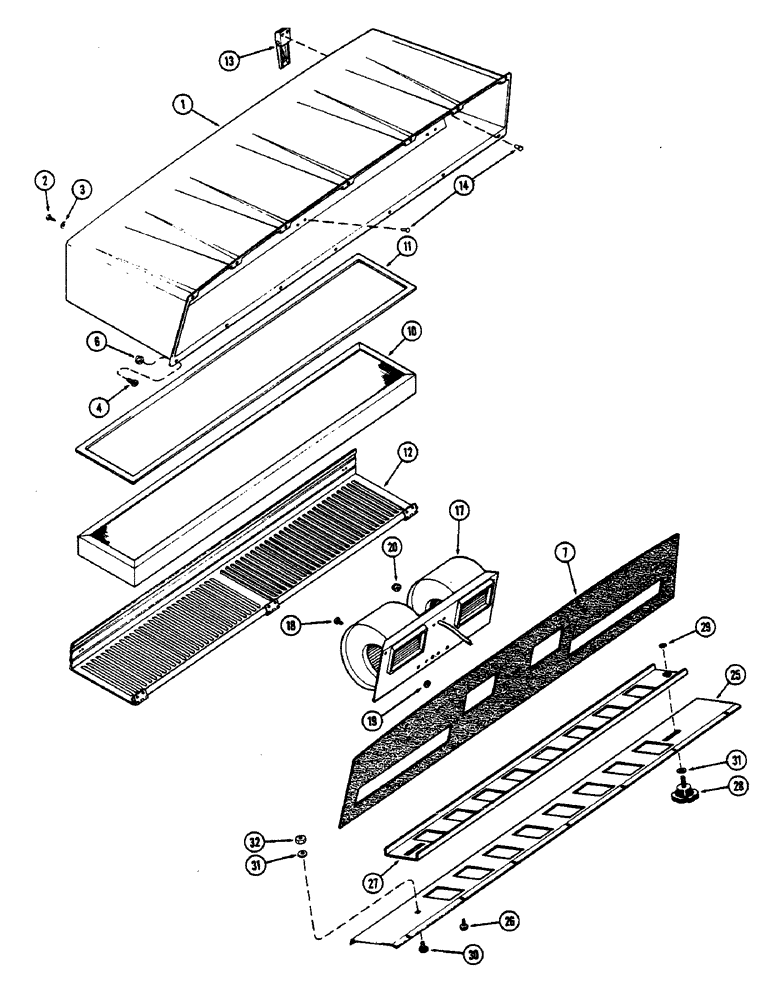

Запчасти Case IH 2390 (9-382) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F64058

FILTER

HOUSING - filter and blower

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" round head self tapping

7шт.

3

F63765

WASHER

- finishing

7шт.

4

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- #10-32 x 3/4" pan head

7шт.

6

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex lock

7шт.

7

F63592

SEAL

-, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F63669

SEAL

- filter to housing (Cab serial no. 12010789 and after)

1шт.

11

F64515

SEAL

- filter to housing (Prior to cab serial no. 12010789)

1шт.

12

F89926

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-547

RIVET - 1/8" pop

10шт.

17

REF

INSTRUCTION

BLOWER - cab air (See Figure 9-384)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex head self tapping

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex lock

2шт.

20

353-700

BUSHING

- blower wire, 3/8" hole (9.65 MM)

1шт.

25

F64081

PLATE

- air circulating

1шт.

26

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex head self tapping

15шт.

27

F98175

DOOR

- air circulating

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

30

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 5/16 x 3/4" NC carriage (Grade 2)

1шт.

31

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex lock

1шт.
