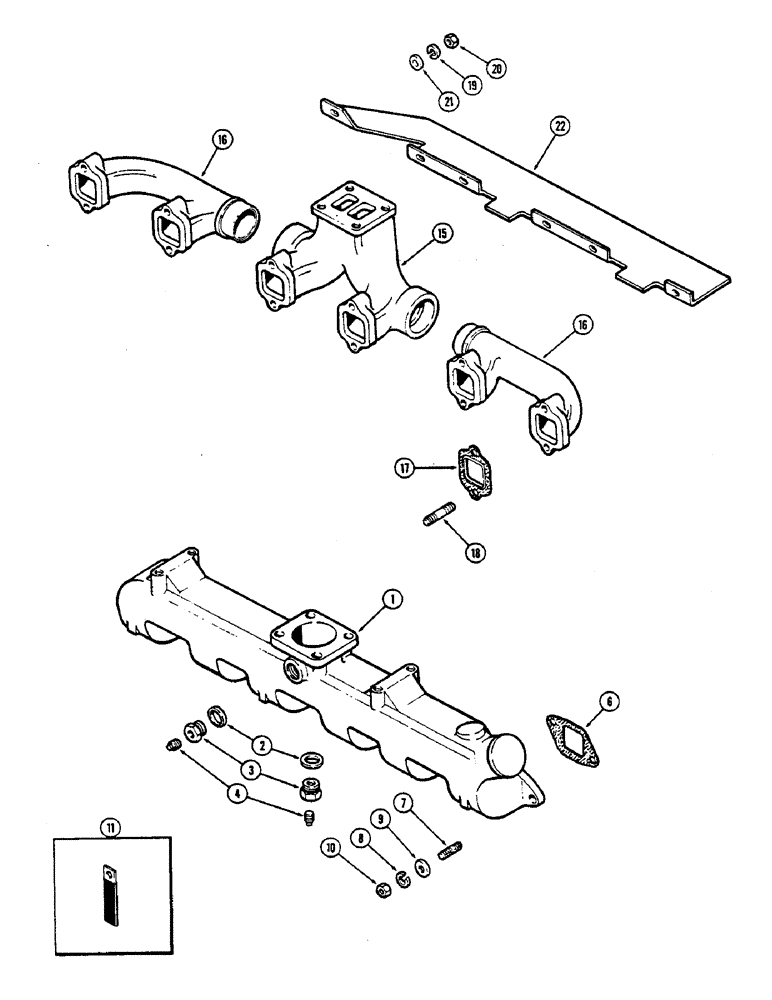

Запчасти Case IH 2390 (2-20) - INTAKE MANIFOLD, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake (Replaces A66087), Includes: Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater hole

2шт.

4

221-1849

PLUG

- 1/8" PT square head

2шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A59077

STUD

- intake manifold, 3/8" NC x 1-13/16"

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

12шт.

11

A149624

CLIP

- air conditioner hoses (On intake manifold studs)

3шт.

15

A76322

MANIFOLD

- exhaust, center

1шт.

16

A65917

MANIFOLD

- exhaust, ends

2шт.

17

A140252

MANIFOLD GASKET

- exhaust manifold

6шт.

18

A140924

STUD

- exhaust manifold, 3/8" NC x 2-5/8"

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seezpruf (Exhaust manifold)

12шт.

21

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM) (Heat shield), exhaust manifold

6шт.

22

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.
