(9-376) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NO. 12030191

Запчасти Case IH 2390 (9-376) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NO. 12030191 (09) - CHASSIS/ATTACHMENTS

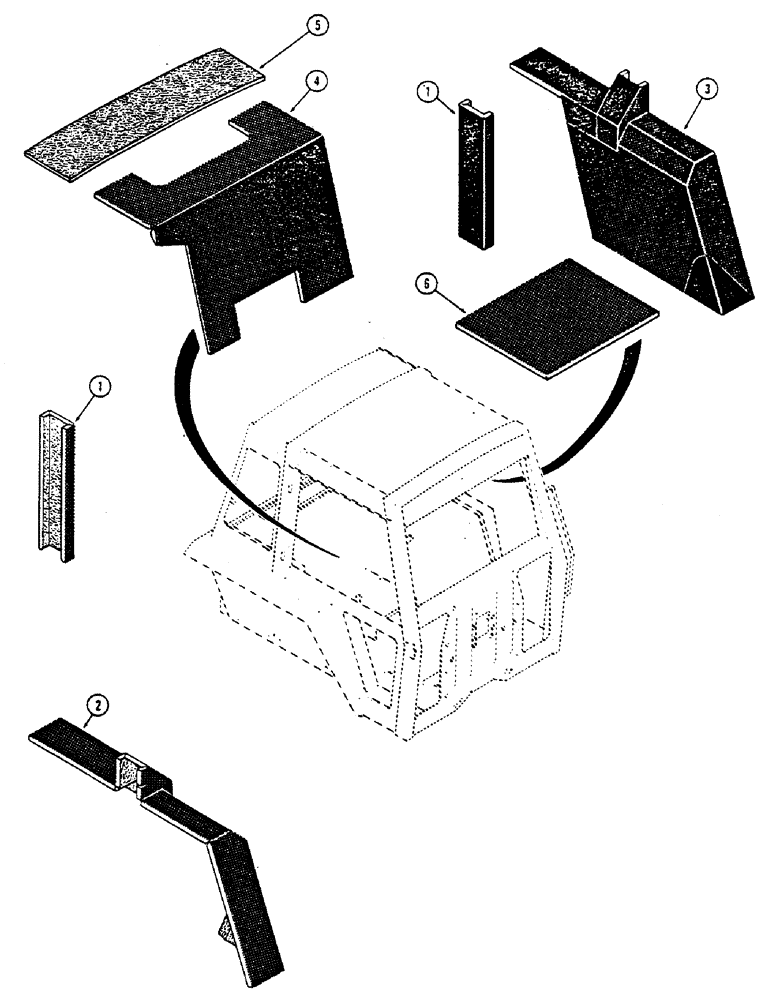

Схема запчастей Case IH 2390 - (9-376) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NO. 12030191 (09) - CHASSIS/ATTACHMENTS
4
1
2
1
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64440

COVER

- rollbar

2шт.

2

F64438

COVER

- rear panel, right

1шт.

3

F64439

COVER

- rear panel, left

1шт.

4

F64435

COVER

- fuel tank

1шт.

5

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

6

F64434

COVER

- headliner

1шт.
