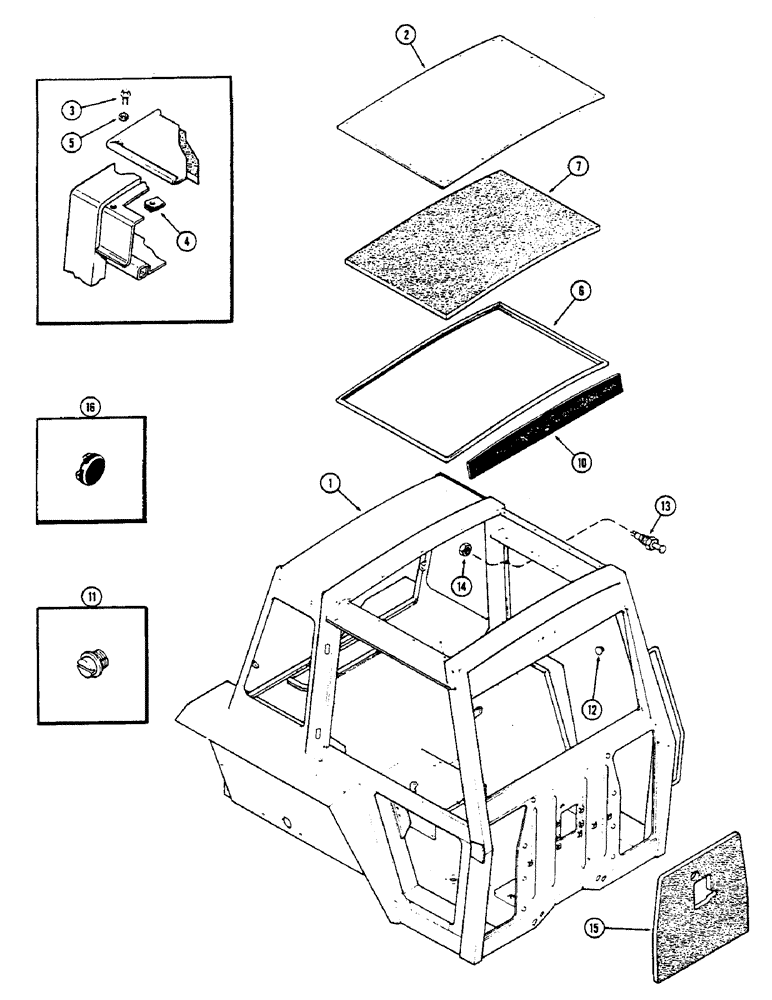

Запчасти Case IH 2390 (9-362) - CAB, FRAME AND ROOF (09) - CHASSIS/ATTACHMENTS

F89961

CAB - with heater (Used prior to P.I.N. 8841101)

1шт.

F89963

CAB - with heater and air conditioning (Prior to P.I.N. 8841101)

1шт.

F89965

CAB - with heater, radio speakers and antenna (Prior to P.I.N. 8841101)

1шт.

F89967

CAB - with heater, air conditioning, radio speakers and antenna (Prior to P.I.N. 8841101)

1шт.

F98219

SHELL

CAB - with heater, air conditioning, radio speakers and antenna (P.I.N. 8841101 and after)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F64316

ROOF

- cab

1шт.

3

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" NC hex washer head

18шт.

4

131-617

NUT,Ret, J, 1/4"-20

- 1/4" type J Tinnerman speed

18шт.

5

F64531

SEALING WASHER

WASHER - sealing

18шт.

6

F64532

SEAL

- roof (Replaces A42676)

1шт.

7

F64430

FOAM

- temperature barrier

1шт.

10

A42582

DECAL

- front panel

1шт.

11

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

12

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" push type, front post (Without air conditioning)

2шт.

13

F63895

SWITCH

- dome light, door opening

1шт.

14

129-578

NUT,5/16"-18, G5

- 5/16" NC hex

1шт.

15

A147357

PAD

- firewall noise

1шт.

16

353-591

PLUG,2

- " recessed head button 2

1шт.
