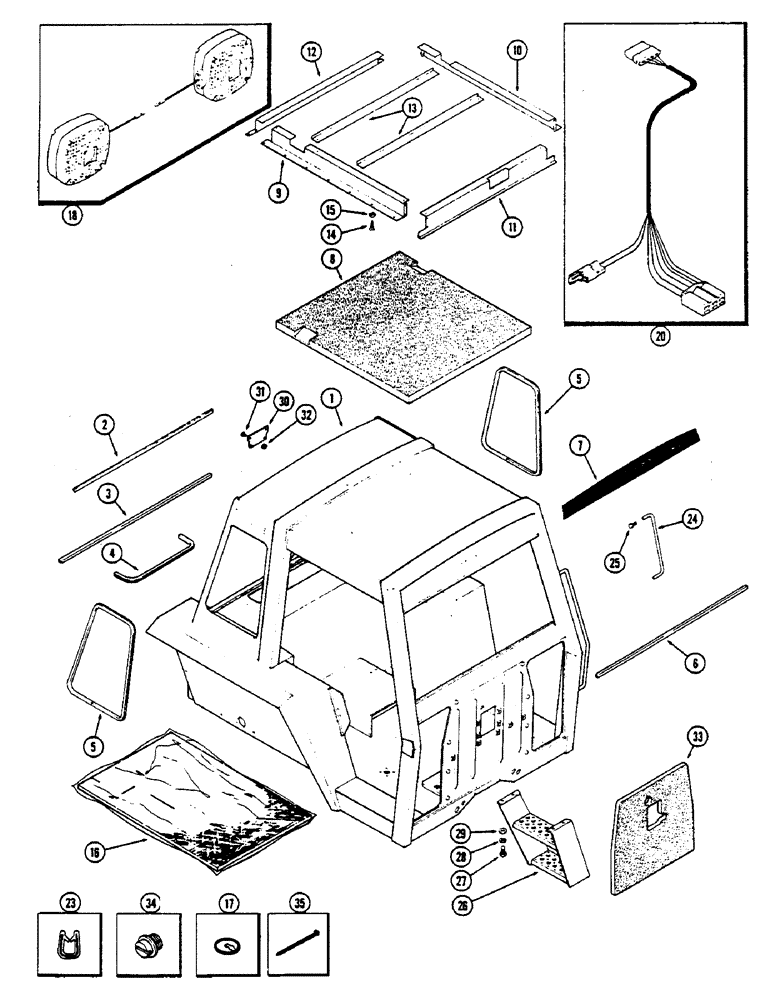

Запчасти Case IH 2390 (9-360) - 4 POST PROTECTIVE FRAME, P.I.N. 8841101 AND AFTER (09) - CHASSIS/ATTACHMENTS

F98203

ROPS

FRAME ASSEMBLY - protective (Machine item), Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order F98203)

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window, 45" long (1143 MM) (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - rear window, 51" long (1295 MM) (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - horizontal window, 32-3/4" long (832 MM) (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

TRIM - rear side window, 81-1/2" long (2070.1 MM) (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

TRIM - front window, 49-1/2" (1257 MM) (Order F64277)

1шт.

7

A42582

DECAL

- front panel

1шт.

8

F64125

LINING

HEADLINER

1шт.

9

F63968

PANEL

- RH support, headliner

1шт.

10

F63969

PANEL

- LH support, headliner

1шт.

11

F63970

PANEL

- front support, headliner

1шт.

12

F63971

PANEL

- rear support, headliner

1шт.

13

F64123

BRACKET

ANGLE - center support, headliner

2шт.

14

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" oval head Phillips

19шт.

15

F64315

WASHER

- finishing

19шт.

16

F64421

MAT

- under floor

1шт.

17

R37160

RETAINER

- mat

11шт.

18

REF

INSTRUCTION

LAMP - warning (See Figure 4-134)

2шт.

19

F64416

HARNESS

- wire, warning and flood lamp (Not shown.See Figure 4-142)

1шт.

20

F64461

HARNESS

- wire, lower post

1шт.

23

F64277

SEAL

TRIM - window, 50' roll (1.27 M)

1шт.

24

A143834

HANDLE

- mounting

1шт.

25

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

26

F89892

STEP

- mounting

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32" (11.11 x 22.22 x 2.38 MM)

3шт.

30

A149306

COVER

- rear, fuel tank water trap opening

1шт.

31

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" slotted pan head

4шт.

32

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24 Keps

4шт.

33

A147357

PAD

- fire wall

1шт.

34

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

35

T54520

STRAP

- nylon, wire harness

1шт.
