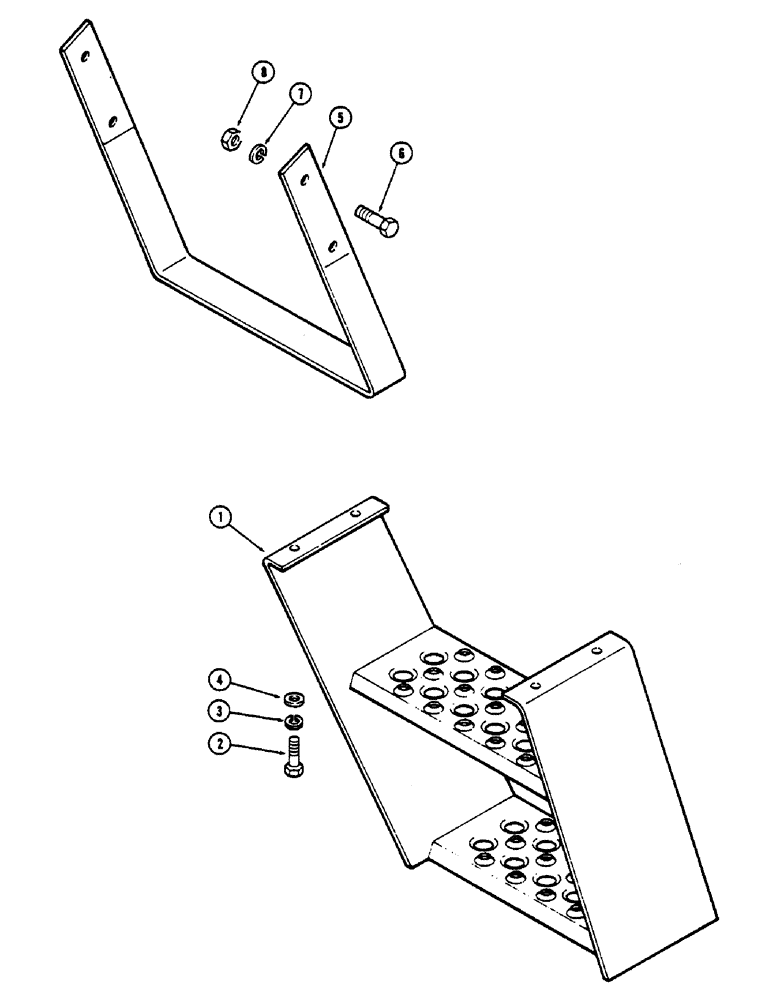

Запчасти Case IH 2390 (9-356) - STEPS (09) - CHASSIS/ATTACHMENTS

1

F98176

STEP

- mounting

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32" (11.11 x 22.22 x 2.38 MM)

4шт.

A67446

ATTACHMENT

- step extension (Machine item), Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

STEP - extension (Order A67446)

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
