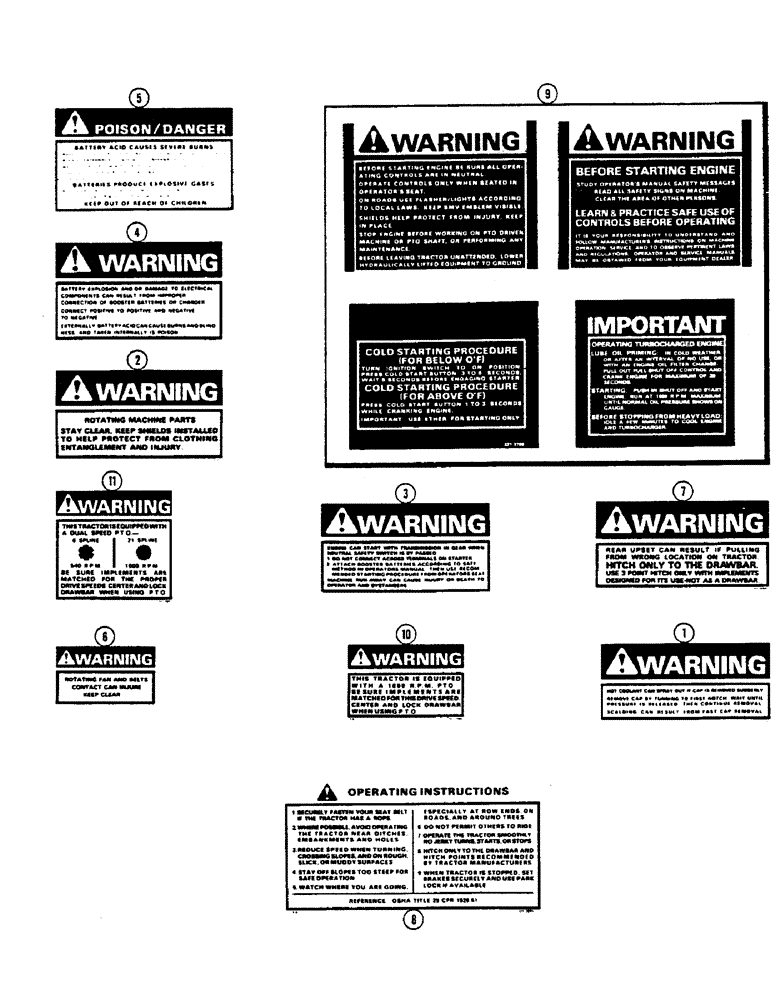

Запчасти Case IH 2390 (9-352) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A143220

DECAL

KIT - safety, Includes: Ref. 1 - 11

1шт.

1

321-3708

DECAL

- radiator (RH side of fan shroud)

1шт.

2

321-3710

DECAL

- PTO (On shield)

1шт.

3

321-3709

DECAL

- starter

1шт.

4

321-3707

DECAL

- battery booster cable (Above battery on cab)

2шт.

5

321-2996

DECAL

- battery acid (Not used this machine)

2шт.

5

321-5531

DECAL

- battery acid (French language)

1шт.

6

321-3596

DECAL

- fan belts (On side panel plate)

2шт.

7

321-3845

DECAL

- hitch instructions (On rear of cab)

1шт.

8

321-3895

DECAL

- operating instructions (OSHA) (Under RH rear window)

1шт.

9

321-3766

DECAL

- operating instructions (Turbocharger) (On cab headliner)

1шт.

10

321-3900

DECAL

- PTO (1000 RPM) (On shield)

1шт.

11

321-3901

DECAL

- PTO (Dual speed) (Not used this machine)

1шт.
