Запчасти Case IH 2390 (2-16) - COLD START ASSISTANCE, 504BDT, DIESEL ENGINE, ETHER INJECTION EQUIPMENT J I CASE INSTALLED (02) - ENGINE

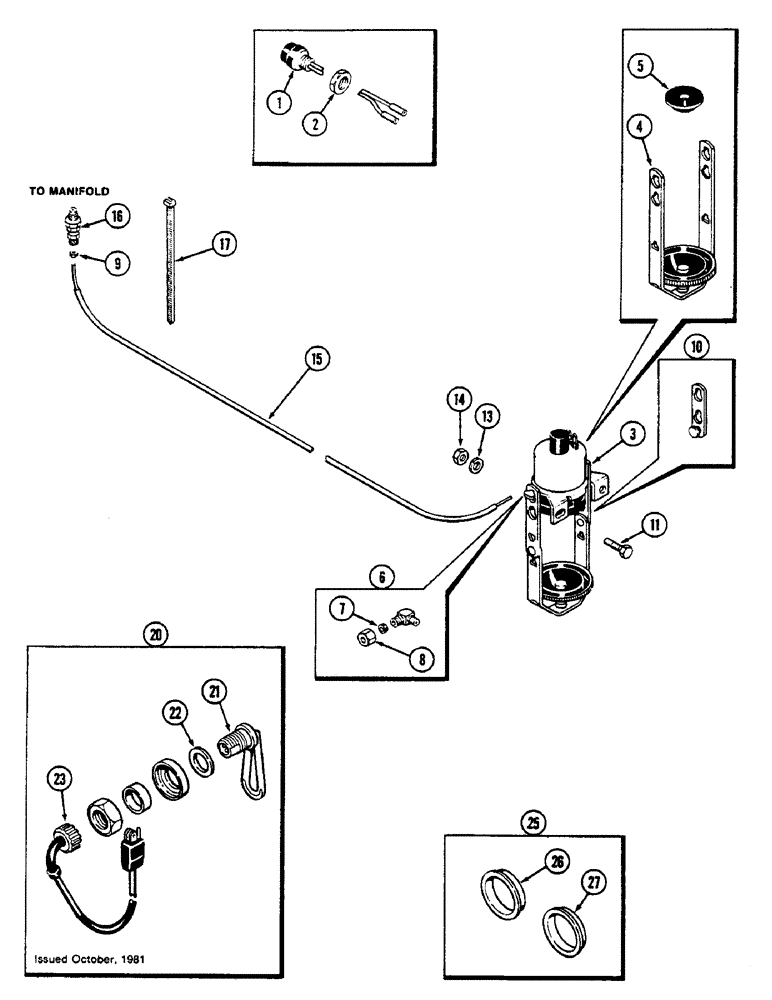

Схема запчастей Case IH 2390 - (2-16) - COLD START ASSISTANCE, 504BDT, DIESEL ENGINE, ETHER INJECTION EQUIPMENT J I CASE INSTALLED (02) - ENGINE
21
27
14
7
25
1
20
17
3
11
2
26
9
22
6
15
8
5
23
16
10
13
4

Артикул

Название

Примечание

Количество

1

A135520

SWITCH

- Ether Solenoid

1шт.

2

129-127

NUT,5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether injector

1шт.

4

A45687

CLAMP

BAIL - solenoid (Order D77648), Includes: Ref. 4 - 9

1шт.

5

R30786

GASKET

- can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Check valve, Incl. Ref 7 & 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

R30812

LINK

- bail extension

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A149932

TUBE

solenoid to injector - 2006 mm (79 in)

1шт.

16

A145070

NOZZLE INJECTION

INJECTOR - nozzle

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CLIP - nylon strap, tube

4шт.

20

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block (Replaces A47474 and A154740), Includes: Ref. 20 - 23

1шт.

Subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" dia. A182059 has a 1" thread.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, cylinder block

1шт.

22

A45114

GASKET

- element, cylinder block heater

1шт.

23

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, with plugs 12" long (304.8 MM), cylinder block

1шт.

25

A44006

SLEEVE

KIT - heater installation, cylinder block, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16" (52.39 MM) diameter hole, cylinder block heater

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8" (53.96 MM) diameter hole, cylinder block heater

1шт.

Выбрано товаров: 24
