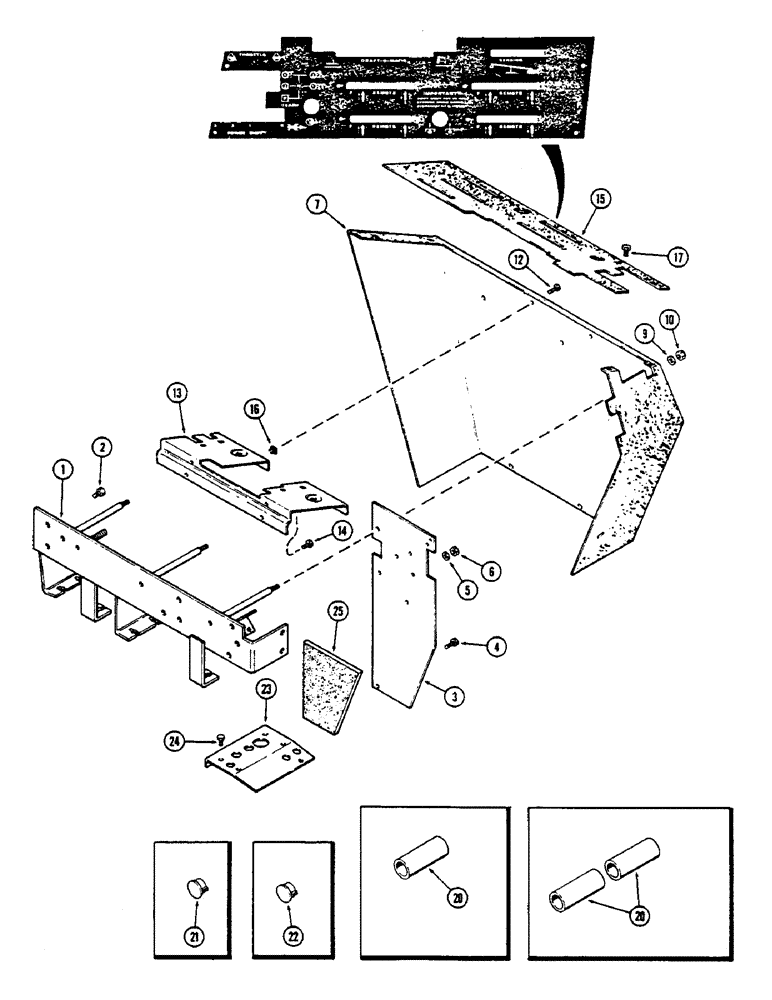

Запчасти Case IH 2390 (9-334) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A143809

SUPPORT

- control console

1шт.

2

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - 3/8 x 5/8" NC hex self-threading

5шт.

3

A141562

SUPPORT

- gear shift

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - 1/4 x 3/4" hex self-tapping

1шт.

5

195-2029

WASHER,7/16" x 1 1/4" x .134"

- 1-1/4 x 7/16" x 10 gauge

2шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" hex jam center lock

3шт.

7

A145028

GUARD

SHROUD - console

1шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

3шт.

10

129-883

NUT,Crown, 3/8"-16

- 3/8" hex low crown

3шт.

12

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - 1/4 x 3/4" hex self tapping

5шт.

13

A145149

SUPPORT

- console cover

1шт.

14

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - 3/8 x 5/8" NC hex self-threading

2шт.

15

A141669

COVER

- console (Includes lettering)

1шт.

16

A67319

NUT

- console cover hold down

6шт.

17

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" hex self tapping

8шт.

20

A67318

BUSHING

SPACER - control lever (See insets)

1шт.

21

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8" (In platform)

2шт.

22

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8" (In platform) (without hitch)

2шт.

23

A145830

PLATE

- shift cable mounting

1шт.

24

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

BOLT - 3/8 x 1" NC hex self-threading

6шт.

25

A147799

FOAM

- console shift support

1шт.
