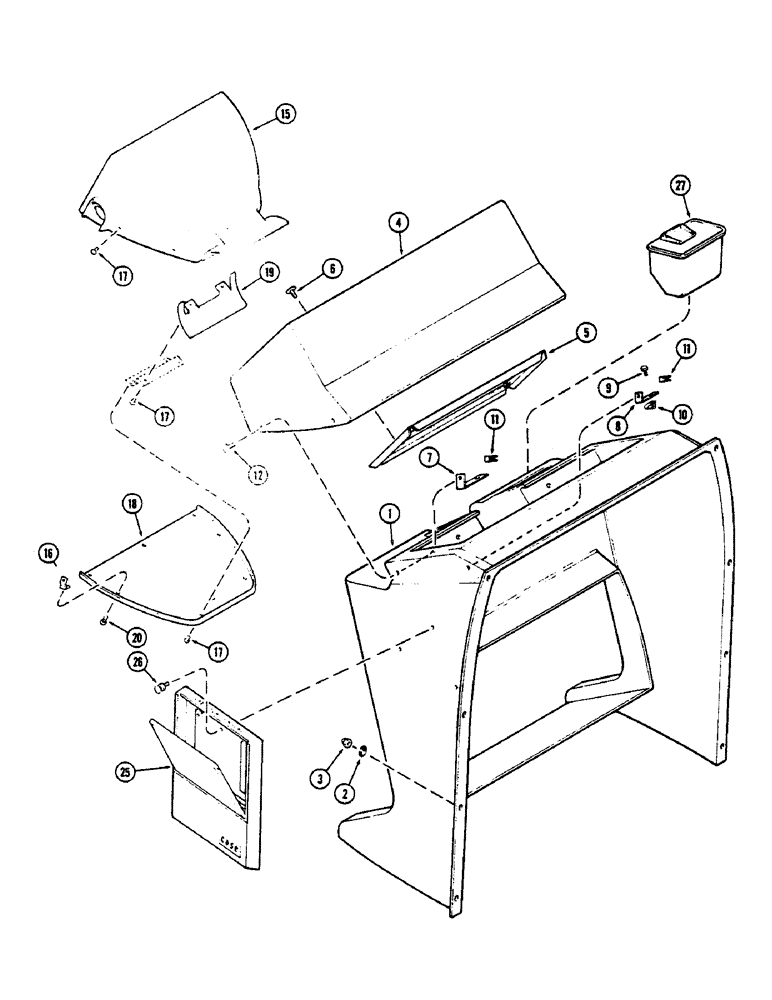

Запчасти Case IH 2390 (9-332) - INSTRUMENT PANEL SHROUD (09) - CHASSIS/ATTACHMENTS

1

A139405

GUARD

SHROUD - instrument panel, lower

1шт.

2

A160525

WASHER

- shroud (Replaces A135782)

8шт.

3

129-879

NUT - 1/4" NC hex crown

8шт.

4

A139153

GUARD

SHROUD - instrument panel, upper

1шт.

5

A161073

SUPPORT

- instrument cluster (Replaces A139151)

1шт.

6

187-1081

SELF-TAP SCREW,Pan, 0.19"-16 x 1/2"

SCREW - #10 x 1/2" pan head Phillips self tapping

2шт.

7

A139109

BRACKET

- shroud support, lower

2шт.

8

A139110

BRACKET

- shroud support, upper

2шт.

9

113-42

BOLT

- 1/4 x 1/2" NC hex (Grade 5)

4шт.

10

131-627

NUT,Tinn, U, 1/4"-20

- 1/4" NC U Type Tinnerman

4шт.

11

131-644

NUT,Tinn, #14

- J type Tinnerman

4шт.

12

187-1901

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1"

SCREW - #14 x 1" Truss head self tapping

4шт.

15

A141208

GUARD

SHROUD - steering column

1шт.

16

A141686

CLIP

- angle fastener

4шт.

17

151-524

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

10шт.

18

A141684

BASE

- steering console

1шт.

19

A145575

GUARD

SHIELD - steering console, lower

1шт.

20

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" Truss head Phillips

4шт.

25

A141933

BOX

- operators manual

1шт.

26

A162364

FASTENER

- speed cinch nylon (Replaces A143300)

3шт.

27

F63395

TRAY

- ash

1шт.
