Запчасти Case IH 2390 (2-14) - AIR CLEANER, 504BDT, DIESEL ENGINE (02) - ENGINE

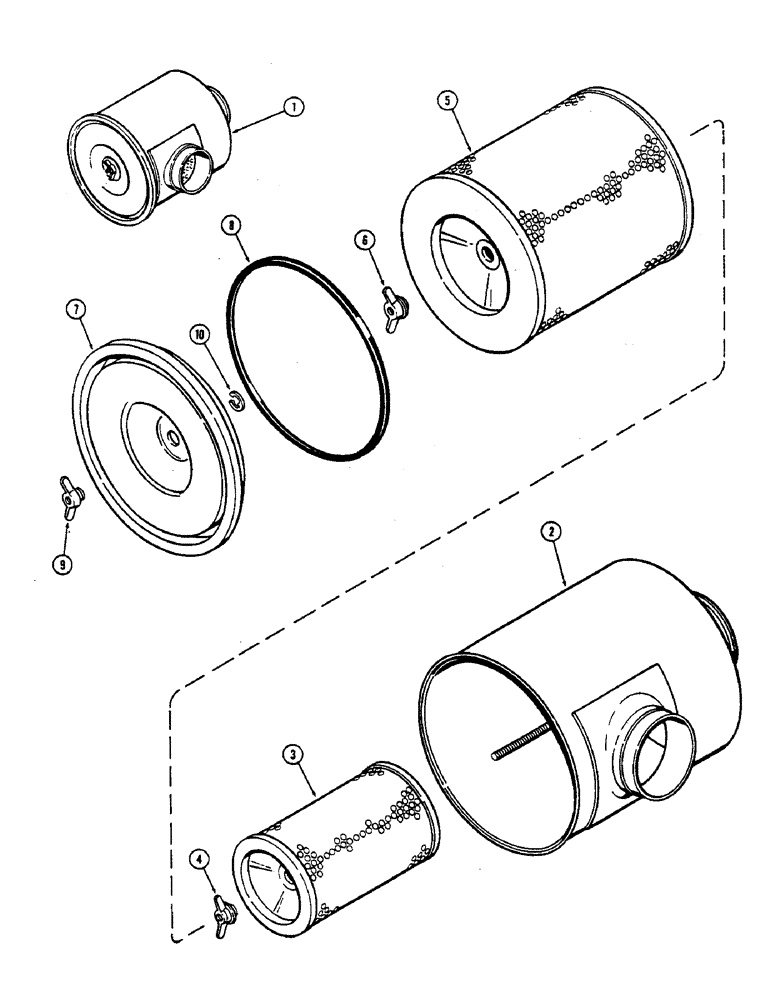

Схема запчастей Case IH 2390 - (2-14) - AIR CLEANER, 504BDT, DIESEL ENGINE (02) - ENGINE
7
1
9
6
8
10
2
4
5
3

Артикул

Название

Примечание

Количество

1

A147020

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A47146

AIR FILTER

ELEMENT - inner

1шт.

4

F91761

WING NUT

- element retainer

1шт.

5

A47145

AIR FILTER

ELEMENT - outer

1шт.

6

A47143

NUT

- element retainer

1шт.

7

A47142

COVER

ASSEMBLY - cleaner, Includes: Ref. 8 - 10

1шт.

8

A47103

GASKET

- cover

1шт.

9

A47102

WING NUT

- cover retainer

1шт.

10

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, , nut #87, .668" Dia, E-Type

1шт.

Выбрано товаров: 10
