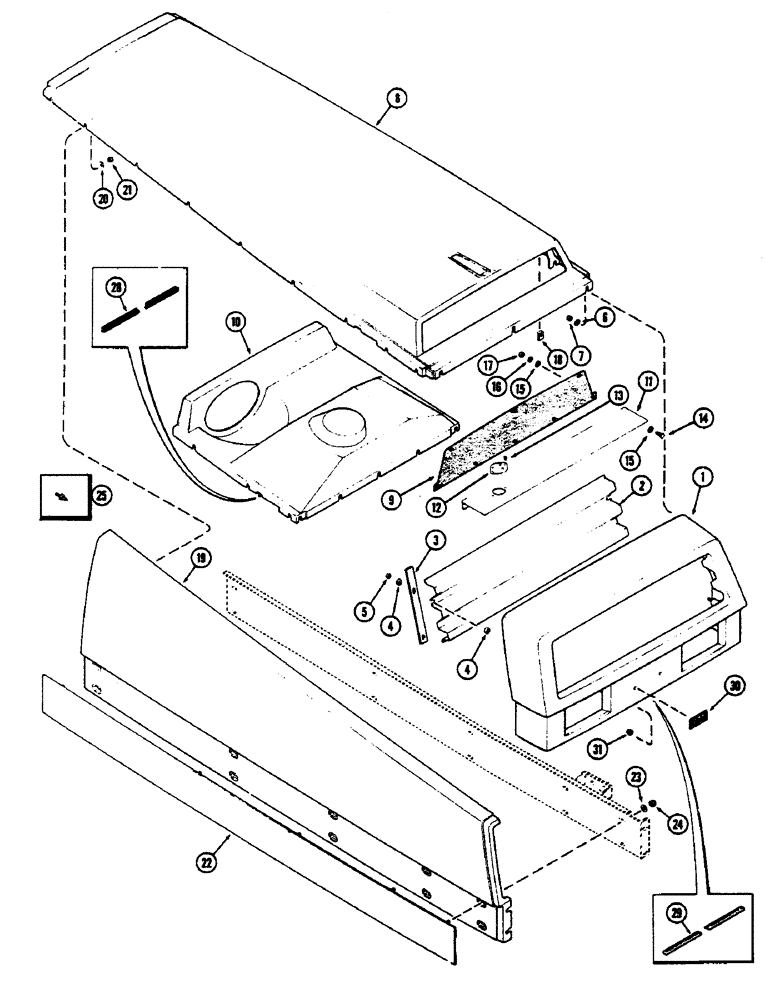

Запчасти Case IH 2390 (9-330) - UPPER GRILLE, HOOD, SIDE AND DECAL PANELS (09) - CHASSIS/ATTACHMENTS

1

A145676

GRILLE

- upper (Includes 11-A160247 studs, See Ref 25)

1шт.

2

A162559

SCREEN

- upper grille (Replaces A145717)

1шт.

3

A147667

BRACKET

- upper grille screen

2шт.

4

A147030

SPACER

- grille screen

8шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

6

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

7шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

7шт.

8

A145580

GUARD

HOOD - upper

1шт.

9

A162556

SCREEN

- air scoop (Replaces A145801)

1шт.

10

A147041

SCOOP

- hood inner

1шт.

11

A149718

BAFFLE

- air scoop screen

1шт.

12

A149329

LENS

- sight, air conditioning

1шт.

13

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6-32 x 3/8" hex head

2шт.

14

113-30

BOLT - 1/4 x 5/8" NC hex (Grade 5)

8шт.

15

195-127

16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

13шт.

16

192-44

LOCK WASHER

- lock, 1/4"

8шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

5шт.

18

131-135

SPRING NUT,Tinn, U, 1/4"-20

3шт.

19

A145623

PANEL

- hood side, RH upper (Includes 9-A16024 studs. See Ref 25)

1шт.

19

A145622

PANEL

- hood side, LH upper (Includes 9-A160247 studs. See Ref 25)

1шт.

20

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

18шт.

21

131-204

NUT,1/4"-20

NUT - 1/4" NC hex elastic

18шт.

22

A145688

PANEL

- decal

2шт.

23

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

20шт.

24

131-205

LOCK NUT,5/16"-18

NUT - 5/16" NC hex elastic

20шт.

25

A160247

STUD

- mounting 91/4" NC)

1шт.

28

A149328

SEAL

TRIM - edge, 46-1/4" (1175.75 MM) long (Order A64864)

1шт.

29

A160202

SEAL

- front, hood to grille (Order A162397, 50' long, 15.24 M)

1шт.

30

321-4739

EMBLEM

- grille, Case mark

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 1/4" self-threading

2шт.
