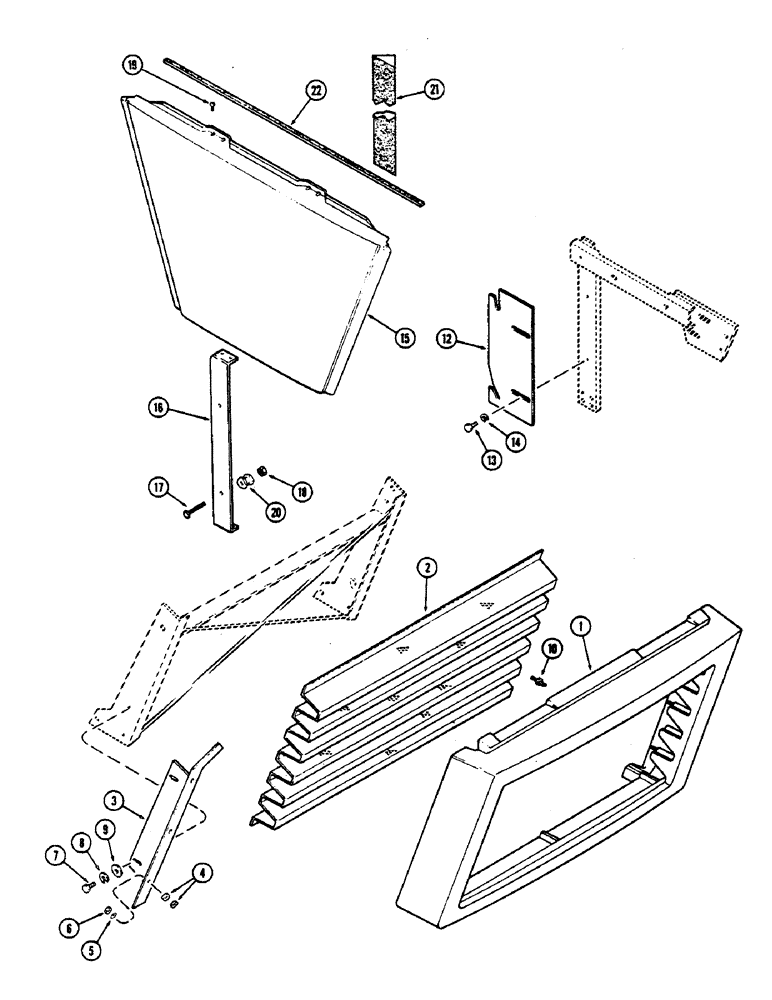

Запчасти Case IH 2390 (9-328) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A145800

GUARD

GRILLE - lower (Includes 6-A160247 studs, see Ref 10)

1шт.

2

A162557

SCREEN

- grille, lower (Replaces A145815)

1шт.

3

A147028

BRACKET

ANGLE - grille support, RH

1шт.

3

A147029

BRACKET

ANGLE - grille support, LH

1шт.

4

A147030

SPACER

- grille screen

12шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

195-2174

WASHER,13/32" x 2" x .109"

- 13/32 x 1-1/8 x 3/16" (10.32 x 28.57 x 4.76 MM)

4шт.

10

A160247

STUD

- mounting (1/4" NC)

6шт.

12

A147283

BRACKET

- lower side panel support

2шт.

13

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

A145788

PANEL

- lower side

2шт.

16

A149069

STRAP

- lower side panel

2шт.

17

A160078

BOLT

- side panel adjustment

4шт.

18

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

19

187-1146

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW - 1/4 x 3/8" Phillips pan head

8шт.

20

A147282

SPOOL

- lower side panel lock

4шт.

21

A149132

SEAL

- foam, side panel inner

2шт.

22

A162398

SEAL

- strip, side panel top (Replaces A160201)

2шт.
