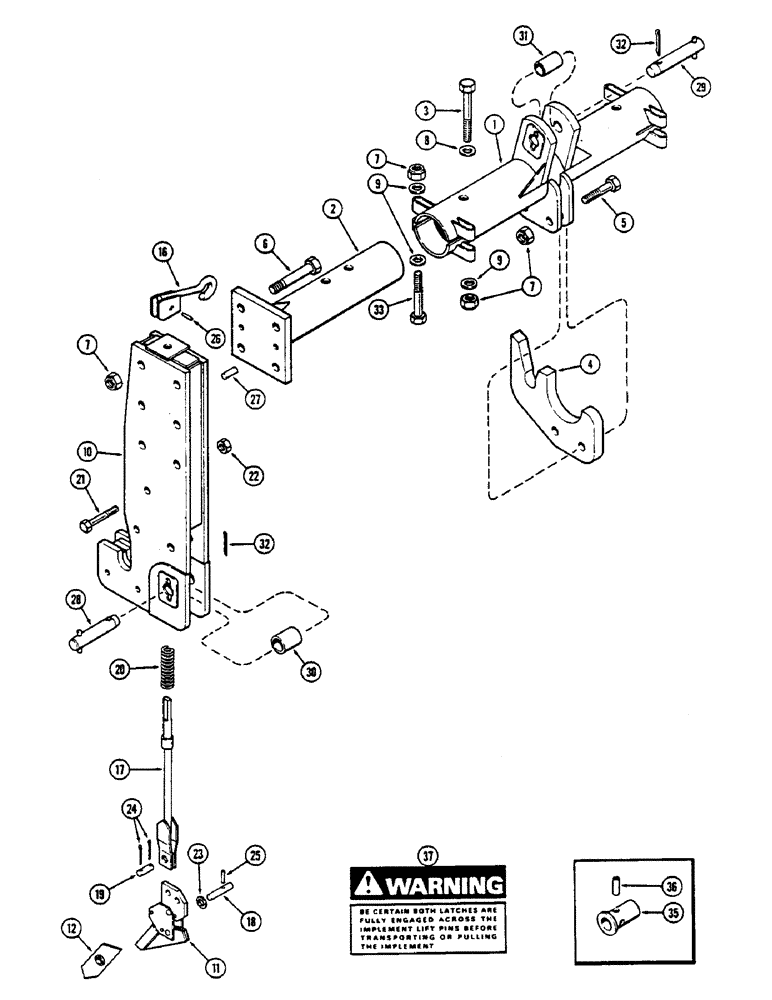

Запчасти Case IH 2390 (9-324) - QUICK HITCH COUPLER, CATEGORY II AND III (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A137262
COUPLER ASSEMBLY - hitch (Machine item), Includes: Ref. 1 - 33
1шт.
1
A45449
CROSS
PIPE - cross, outer
1шт.
2
A45450
CROSS
PIPE - cross, inner
2шт.
3
A45451
BOLT,Hex, 3/4" - 10 x 5 5/8"
BOLT - 3/4 x 5-1/4" NC hex
2шт.
4
A45452
LUG
- upper arm hitch
1шт.
6
A45464
SCREW
BOLT - 3/4 x 4-1/4" NC hex
12шт.
7
129-108
NUT,3/4"-10, G5
16шт.
8
195-45
WASHER,3/4"
4шт.
9
A45468
WASHER
- 3/4" (19.05 MM) flat, special
8шт.
10
A45453
BRACKET
HITCH - lower arm bracket, RH
1шт.
10
A45455
BRACKET
HITCH - lower arm bracket, LH
1шт.
11
A45454
LEVER
- lock, RH
1шт.
11
A45457
LEVER
- lock, LH
1шт.
12
A44470
LEVER
- lower trip ratchet, RH
1шт.
12
A44471
LEVER
- lower trip ratchet, LH
1шт.
16
A45456
HANDLE
- hitch release
2шт.
17
A45458
ROD
- handle to tripping device
2шт.
18
A45459
PIN
- 2-1/2" long (63.5 MM)
2шт.
19
A45460
PIN
- 1-3/8" long (35.05 MM)
2шт.
20
A45461
SPRING
- release rod
2шт.
21
113-447
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
2шт.
22
131-165
NUT,1/2"-13, GA
NUT - 1/2" NC hex top lock
2шт.
23
195-41
WASHER,5/8"
- 21/32 x 1-5/16 x 1/8" (16.67 x 33.14 x 3.17 mm)
2шт.
24
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
4шт.
26
135-75
GROOVED PIN,1/4" x 1", Type A
PIN - roll, 1/4 x 1"
2шт.
27
135-293
PIN
- dowel, 1/2 x 1-1/4"
4шт.
28
A45462
PIN
- 4-3/4" long (120.65 MM)
2шт.
29
A45463
PIN
- 5-1/2" long (139.7 MM)
1шт.
30
A43542
SLEEVE
- coupler arm (Category III)
1шт.
31
A44474
SLEEVE
- upper draft arm pin
1шт.
32
T50113
PIN
- clinch, 3/8 x 1-1/2" (9.65 x 38.1)
3шт.
33
A45469
STUD
BOLT - stud, 3/4 x 4-3/4" NC hex
4шт.
35
T32995
ADAPTER
- hitch coupler (Category II)
2шт.
36
138-188
LOCK PIN,7/16" x 1 1/2", Slotted
Pin, 7/16" x 1 1/2", Slotted
2шт.
37
321-3339
DECAL
- warning, implement lift pins
1шт.
Выбрано товаров: 37
