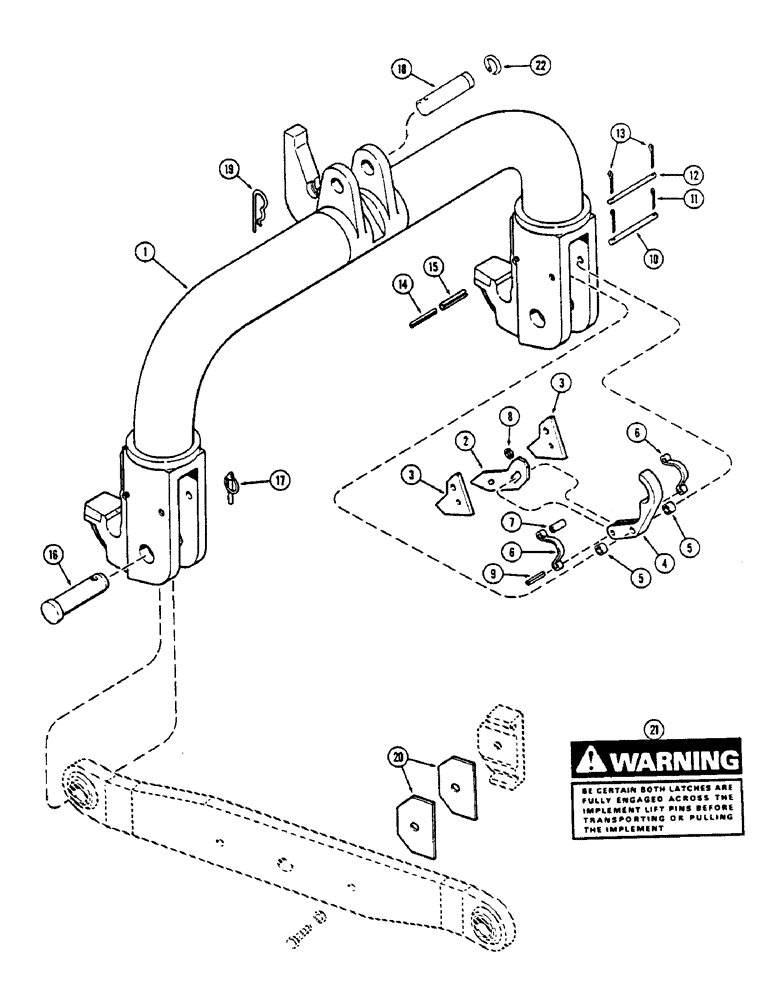

Запчасти Case IH 2390 (9-322) - QUICK HITCH COUPLER, CATEGORY III (09) - CHASSIS/ATTACHMENTS

A67166

ATTACHMENT

- coupler (Machine item), Includes: Ref. 1 - 22

1шт.

A137508

ATTACHMENT

COUPLER ASSEMBLY - hitch (Machine item), Includes: Ref. 1 - 17

1шт.

1

A137509

FRAME

- hitch coupler

1шт.

2

L10088

PLATE

ASSEMBLY - actuator release

2шт.

3

L10177

PLATE

- implement lock

4шт.

4

L10175

HANDLE

- release

2шт.

5

T30946

BUSHING

SPACER - handle, 1/2 x 3/4 x 1/2" (12.7 x 19.05 x 12.7 MM)

4шт.

6

L10263

SPRING

- activator

4шт.

7

L10264

BUSHING

SPACER - activator, 3/8 x 1/2 x 1" (9.65 x 12.7 x 25.4 MM)

2шт.

8

A29701

BUSHING

SPACER - release activator, 1/2 x 5/8 x 1/4" (12.7 x 15.75 x 6.35 MM)

2шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

10

L10262

PIN

- pivot, 1/2" OD x 4-11/16" long (12.7 x 119.13 MM)

2шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

12

L10261

PIN

- spring anchor, 3/8" OD x 4-11/16" long (9.65 x 119.13 MM)

2шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

2шт.

16

A75028

PIN,36.45mm OD x 138mm L

- lower hitch

2шт.

17

A64204

PIN

- klik

2шт.

18

A56401

PIN

- swivel

1шт.

19

A56393

PIN

- cotter

1шт.

20

A64331

BUSHING

SPACER - sway block

4шт.

21

321-3339

DECAL

- warning, latch

1шт.

22

17406

RING

- pin retaining

1шт.
