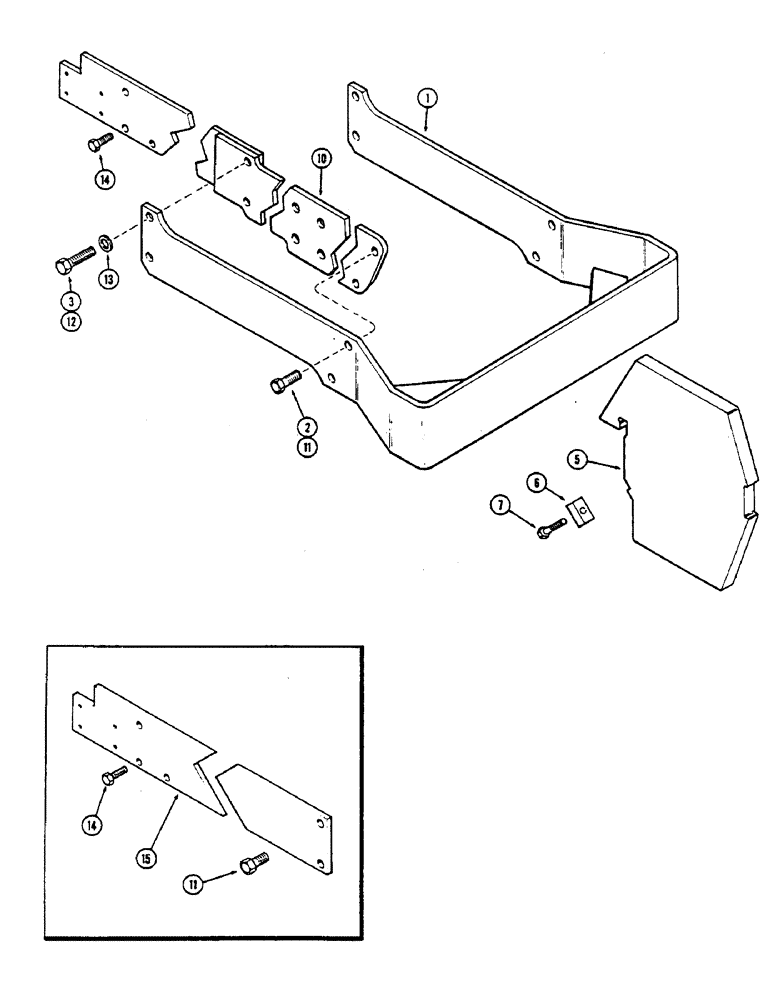

Запчасти Case IH 2390 (9-321A) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

A160539

FRAME - support, front end weight (Replaces A147797)

1шт.

2

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Front)

4шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Rear) Hex, 3/4"-10 x 3", G5

4шт.

A67373

WEIGHT

ATTACHMENT - front end (Machine item), Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - 75 lbs (34 kg) (Order A67373)

1шт.

6

A145919

CLAMP

-, Serial Range: weight-frame

1шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

A160534

RAIL

- RH side (Replaces A147088)

1шт.

10

A160533

RAIL

- LH side (RH shown) (Replaces A147089)

1шт.

11

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Front), side rails Hex, 3/4"-10 x 1 3/4", G5

4шт.

12

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(Rear), side rails Hex, 3/4"-10 x 2 1/4", G5

4шт.

13

A26462

WASHER

- hardened, 49/64 x 1-1/4 x 5/64" (19.45 x 31.75 x 1.98 MM), side rails

4шт.

14

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

Side rails Hex, 5/8"-11 x 1 3/4", G5

6шт.

15

A147088

RAIL ASSY.

RAIL - RH side (Order A160534)

1шт.

15

A147089

RAIL ASSY.

RAIL - LH side (Order A160533)

1шт.
