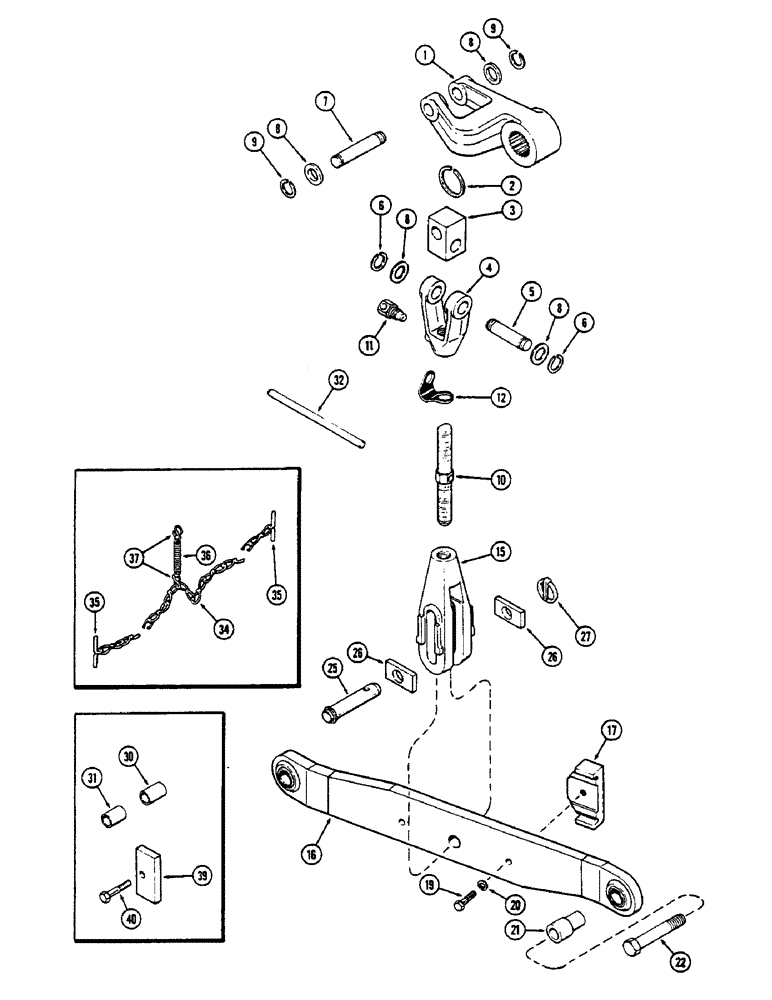

Запчасти Case IH 2390 (9-314) - THREE POINT HITCH, LOWER LIFT LINKS AND DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

1

A63959

ARM

- lift (Prior to transmission serial no. 10204074)

2шт.

1

A160097

ARM

- lift (Transmission serial no. 10204074 and after)

2шт.

2

A63499

SNAP RING,#268, 2.535, Ext

RING - snap, arm to rockshaft

2шт.

3

A63501

BLOCK

- swivel, lift link

2шт.

4

A63502

YOKE

- lift link upper

2шт.

5

A66100

PIN

-, Serial Range: yoke-block

2шт.

6

A28253

RING

- snap, yoke pin

4шт.

7

A63506

PIN

- block to lift arm

2шт.

8

A63507

WASHER

- lift arm pin

8шт.

9

A28253

RING

- snap, arm pin

4шт.

10

A63504

ADJUSTMENT SCREW,1 1/4" - 12 x 10.50mm

- lift link adjusting

2шт.

11

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locking

2шт.

12

A62986

HOLDER

KEEPER - yoke locking screw

2шт.

15

A63505

YOKE

- lift link lower

2шт.

16

A63508

ARM

- draft (Prior to transmission serial no. 10204074)

2шт.

Ref #16 - (34.5" to Holes)

1шт.

16

A147766

ARM

- draft (Transmission serial no. 10204074 and after)

2шт.

17

A65436

BLOCK

- sway

2шт.

19

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

A135666

INSERT

- draft arm to sensing bracket

2шт.

22

113-936

LOCK BOLT,Locking, 1"-8 x 6", G5

BOLT - 1 x 6" NC hex (Grade 5)

2шт.

25

A143993

PIN,31.6mm OD x 161.54mm L

- lower lift link to draft arm

2шт.

26

A63515

PLATE

- pin stop

4шт.

27

A64204

PIN

- klik

2шт.

30

L10462

BUSHING

ADAPTER - upper hitch pin (Category II) 1 x 1-1/4 x 2" (25.4 x 31.75 x 50.8 MM)

1шт.

31

L10463

BUSHING

ADAPTER - lower hitch pin (Category II) 1-1/8 x 1-7/16 x 1-25/32" (28.45 x 36.58 x 45.21 MM)

2шт.

32

A63520

HANDLE

- link adjusting

1шт.

A65684

CHAIN (AG)

CHAIN ASSEMBLY - anti sway, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - anti sway

1шт.

35

A65686

CHAIN

KEEPER - anti sway chain

2шт.

36

A65688

SPRING

- anti sway

1шт.

37

A65687

HOOK

- anti sway chain

2шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT - sway block spacer (Category II), Includes: Ref. 39 and 40

1шт.

39

A65438

BUSHING

SPACER - Category II No sway

2шт.

40

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.
