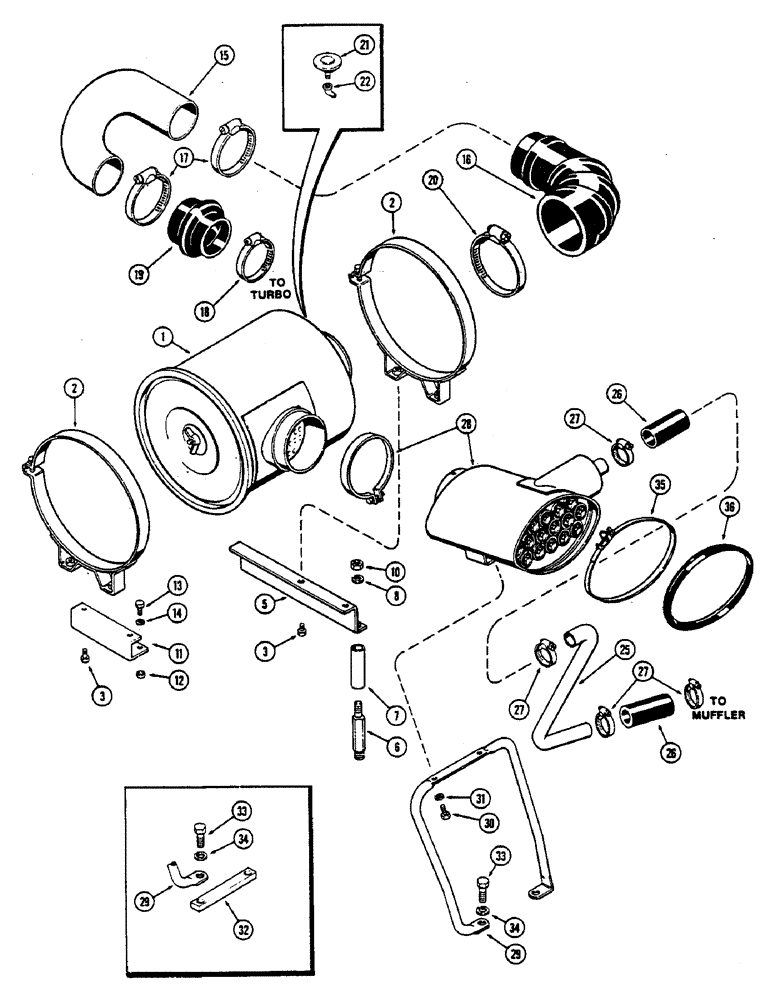

Запчасти Case IH 2390 (2-12) - AIR INDUCTION SYSTEM, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A147020

CLEANER

- air (See Figure 2-14)

1шт.

2

A138724

CLAMP

- cleaner mounting

2шт.

3

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- 3/8 x 5/8" NC hex (Grade 5)

4шт.

5

A147015

BRACKET

- cleaner support, LH

1шт.

6

A64577

JACK SCREW,3/8" - 18 x 5.32"

- jack, cleaner bracket

2шт.

7

A147026

BUSHING

SPACER -, Serial Range: bracket-screw

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

A160650

BRACKET

- cleaner support, RH (Replaces A147014)

1шт.

12

A147031

BUSHING

SPACER -, Serial Range: cleaner-bracket

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A160799

TUBE

- turbocharger inlet (Replaces A147019)

1шт.

16

A147017

ELBOW,88.9mm ID x 362.204mm L

3.00" ID, 3.50" ID x 9.02" - Elbow, Cleaner outlet

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, #64 worm screw type

2шт.

18

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4" (71.37 x 95.25 MM)

1шт.

19

A147016

INTAKE AIR HOSE,88.90 mm ID x 88.90 mm, SAE J200

HOSE 3.00" ID, 3.50" ID x 3.50", SAE J200 - Reducer, Turbocharger inlet

1шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose, #88 worm screw type

1шт.

21

A154782

SWITCH

- air restriction indicator

1шт.

22

221-1401

ELBOW,45º, 1/8"-27, NPT

- 1/8" PT 45 degree

1шт.

25

A147113

TUBE

- aspirator

1шт.

26

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator (Replaces A160028) 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

2шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

4шт.

28

A147025

CLEANER

PRECLEANER - air

1шт.

29

A147018

SUPPORT

- precleaner

1шт.

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

A147013

PLATE

SPACER - precleaner support (Used without air conditioning)

1шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

A160244

STRAP

- seal, precleaner

1шт.

36

A160189

SEAL

- precleaner front

1шт.
