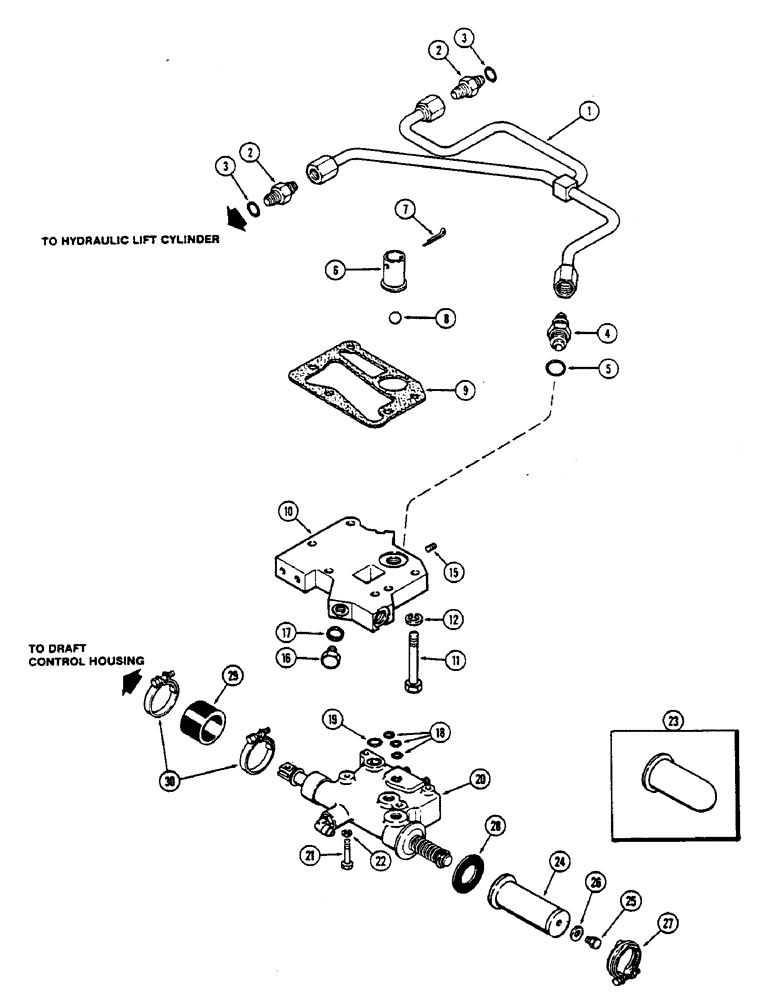

Запчасти Case IH 2390 (8-308) - HITCH SYSTEM, DEPTH AND POSITION VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS

1

A66424

TUBE

- lift cylinder (Prior to transmission serial no. 10231300)

1шт.

1

A162060

TUBE

- lift cylinder (Transmission serial no. 10231300 and after)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - tube, Incl. Ref 3

2шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.88 x 2.29 MM)

1шт.

6

A63458

TUBE

- manifold oil return valve

1шт.

8

211-19

BALL,7/8" Dia

- meter (22.35 MM) 7/8" Dia

1шт.

9

A64014

GASKET

- draft control valve manifold

1шт.

10

A161770

BODY

MANIFOLD - depth control valve (Replaces A145041)

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

12

92-6

LOCK WASHER,3/8"

5шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" hex socket head

1шт.

16

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 17 Hex Soc, 3/4"-16 ORB

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32" (12.7 x 17.53 x 2.29 MM)

5шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 x 3/32" (15.75 x 20.57 x 2.29 MM)

1шт.

20

REF

INSTRUCTION

VALVE - depth and position (See Figure 8-310)

1шт.

21

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

A63473

COVER

- valve spool (Prior to transmission serial no. 10211690)

1шт.

24

A160374

COVER

- valve spool (Transmission serial no. 10211690 and after)

1шт.

7

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

25

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- 1/4 x 3/8" NC hex (Grade 5)

1шт.

26

195-1013

SEALING WASHER,0.26" ID x 0.56" OD x 0.04" Thk

- brass, 1/4 x 9/16"

1шт.

27

A63475

CLAMP,50.29mm ID

- control, valve spool cover

1шт.

28

A65542

GASKET

- control valve spool cover

1шт.

29

A63472

HOSE

- control valve to linkage housing

1шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.76 x 2.29 MM)

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.76 x 2.29 MM)

1шт.
