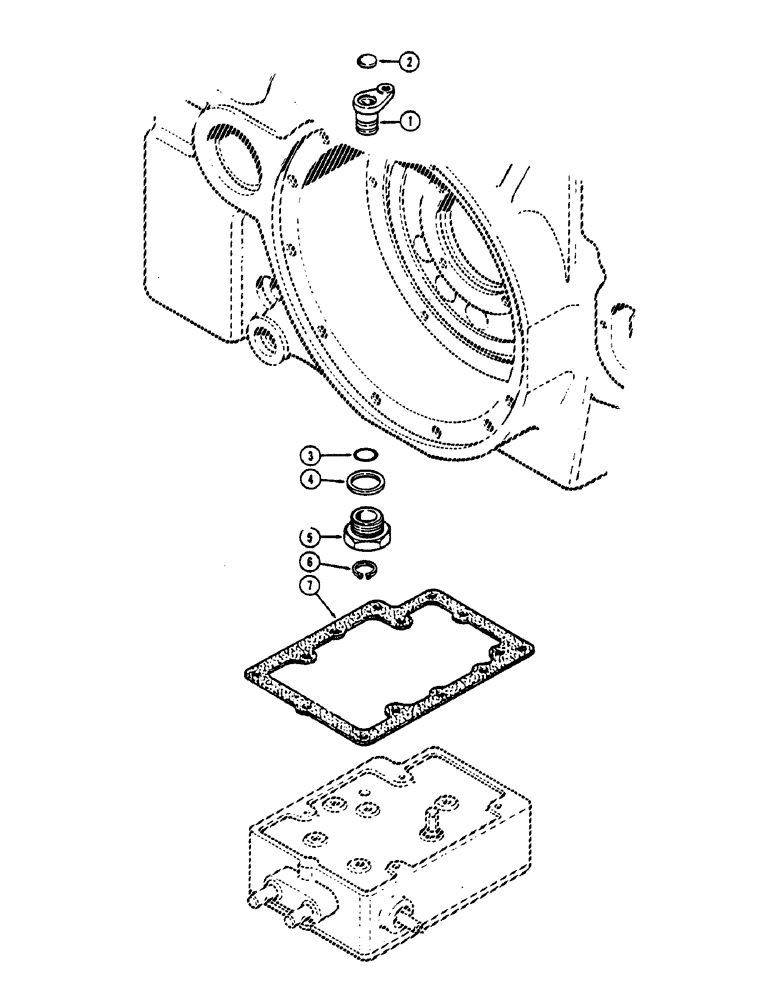

Запчасти Case IH 2390 (8-302) - HITCH SYSTEM, DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

1

A64430

LEVER

- draft control follow up (Prior to transmission serial no. 10204074)

1шт.

1

A147761

ARM

LEVER - draft control follow up (Transmission serial no. 10204074 and after)

1шт.

2

41-12

PLUG,Exp, 3/4"

- 3/4" welch

1шт.

3

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8" (19.05 x 24.5 x 3.05 MM)

1шт.

4

A63447

GASKET

- draft control bushing

1шт.

5

A64429

BUSHING

- draft control follow up (In transmission case)

1шт.

6

B18208

SNAP RING,#100, Ext

follow up lever #100, Ext

1шт.

7

A137621

GASKET

- draft control linkage housing

1шт.
