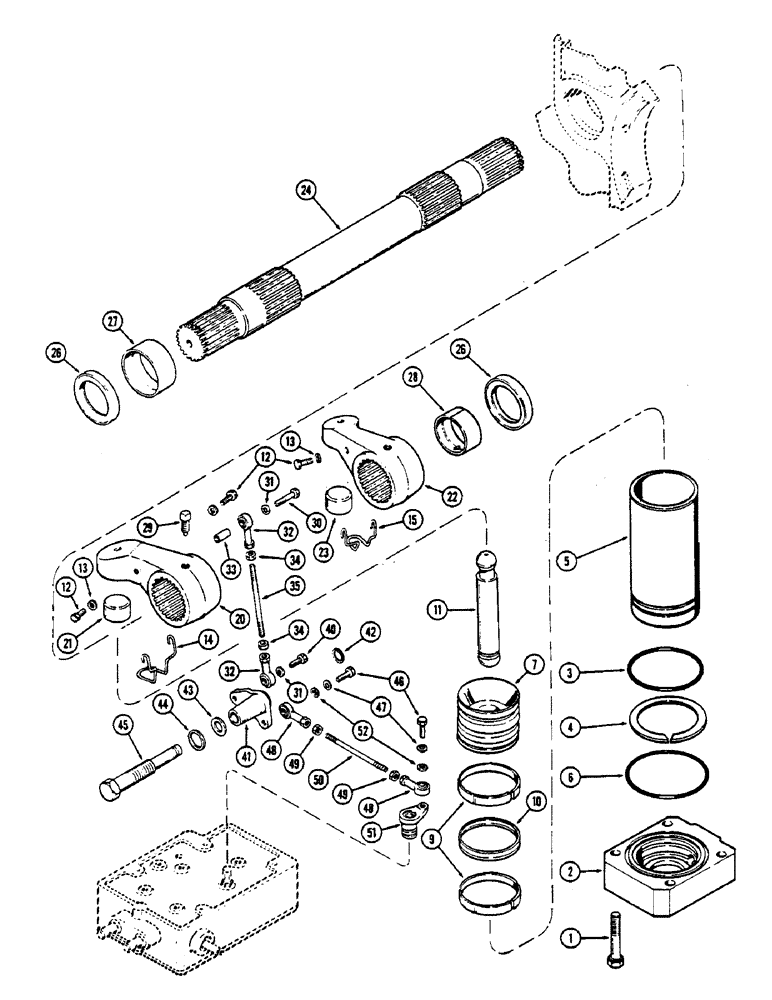

Запчасти Case IH 2390 (8-300) - HITCH SYSTEM, ROCKSHAFT, POWER ARMS AND PISTONS (08) - HYDRAULICS

1

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

8шт.

2

A147764

CAP

- cylinder liner (Transmission serial no. 10204074 and after)

2шт.

2

A141689

CAP

- cylinder liner (Prior to transmission serial no. 10204074)

2шт.

3

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.05 MM)

2шт.

4

A63389

SNAP RING,#450, 4.255, Ext

RING - snap, hydraulic lift cylinder (Replaces A141666)

2шт.

5

A161488

LINING

LINER - hydraulic lift cylinder (Transmission serial no. 10204074 and after)

2шт.

5

A147756

LINING

LINER - hydraulic lift cylinder (Prior to transmission serial no. 10204074)

2шт.

6

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- 5-1/4 x 5-1/2 x 1/8" (133.35 x 139.7 x 3.05 MM)

1шт.

7

A139459

PISTON

ASSEMBLY - rockshaft, with rings, Includes: Ref. 9 and 10

2шт.

9

A63393

RING

- wear

2шт.

10

A137343

SEAL

- U cup

1шт.

11

A147762

ROD

- connecting, piston to power arm (Transmission serial no. 10204074 and after)

2шт.

11

A63395

ROD

- connecting, piston to power arm (Prior to transmission serial no. 10204074)

2шт.

12

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

13

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16" (7.14 x 15.87 x 1.59 MM)

4шт.

14

A63386

CLIP

- power arm, RH

1шт.

15

A63387

CLIP

- power arm, LH

1шт.

20

A63380

ARM

ASSEMBLY - power, RH, Includes: Ref. 21

1шт.

21

A63384

INSERT

- arm

1шт.

22

A63381

ARM

ASSEMBLY - power, LH, Includes: Ref. 23

1шт.

23

A63384

INSERT

- arm

1шт.

24

A63376

ROCKSHAFT

1шт.

26

A63377

OIL SEAL

- oil, rockshaft

2шт.

27

A63378

BUSHING

- rockshaft, RH 3-1/8" ID (79.25 MM)

1шт.

28

A135848

BUSHING

- rockshaft, LH 2-7/8" ID (73.15 MM)

1шт.

29

A63385

SET SCREW,1/2" - 13 x 1 1/8"

- set

2шт.

30

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

1шт.

31

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

32

A32398

BALL JOINT

END - rod, follow up

2шт.

33

A135379

BUSHING

SPACER - upper follow up rod to power arm

1шт.

34

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NC hex jam

2шт.

35

A63452

ROD

- follow up, upper

1шт.

40

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

41

A63449

CRANK

BELLCRANK - follow up linkage

1шт.

42

T25683

SNAP RING,#75, Ext

Ring, Snap, , follow up bellcrank to stud #75, Ext

1шт.

43

A26462

WASHER

- bellcrank

1шт.

44

A27366

GASKET

WASHER - follow up bellcrank stud (Copper)

1шт.

45

A135380

STUD

- follow up linkage bellcrank

1шт.

46

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

47

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

48

A32398

BALL JOINT

END - rod, follow up

2шт.

49

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NC hex., jam

2шт.

50

A63455

ROD

- follow up, lower

1шт.

51

REF

INSTRUCTION

LEVER - draft control follow up (See Figure 8-302)

1шт.

52

A32395

WASHER

- lower rod to bellcrank and lever

2шт.
