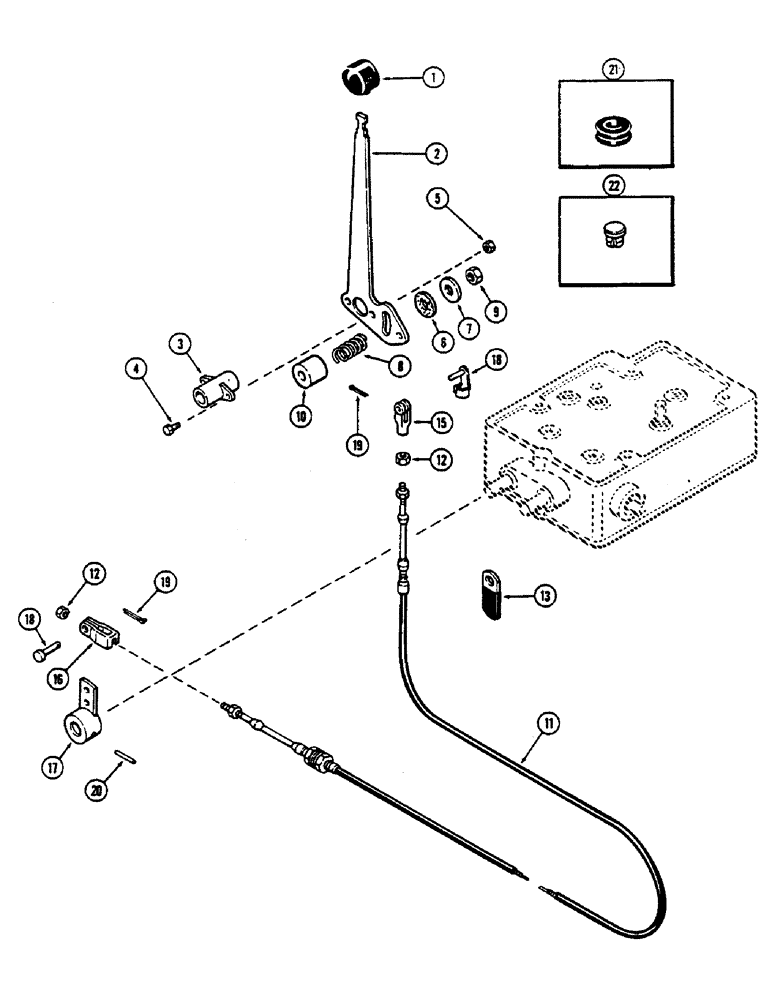

Запчасти Case IH 2390 (8-298) - HITCH SYSTEM, DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A139945

KNOB

- hand lever

1шт.

2

A141391

LEVER

- hand, sensing

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever (Replaces A141371)

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

131-1130

LOCK NUT,5/8"-11, GA

NUT - 1/4" NC hex lock

2шт.

6

A61069

DISC

- friction

1шт.

7

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64" (11.11 x 31.75 x 1.98 MM)

1шт.

8

A65583

SPRING

- friction disc

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex jam

1шт.

10

A160623

BUSHING

SPACER - lever

1шт.

11

A67299

CABLE

- console control, 66"

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- #10-NF hex keps

2шт.

13

A37179

CLIP

- cable

1шт.

14

A149683

PIN

- spring clevis, 3/16"

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lever

1шт.

16

A160819

YOKE

- cable

1шт.

17

A63037

LEVER

- lower sensing

1шт.

18

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

21

A145925

GROMMET

- cable

1шт.

22

A67295

PLUG

- cable

1шт.
