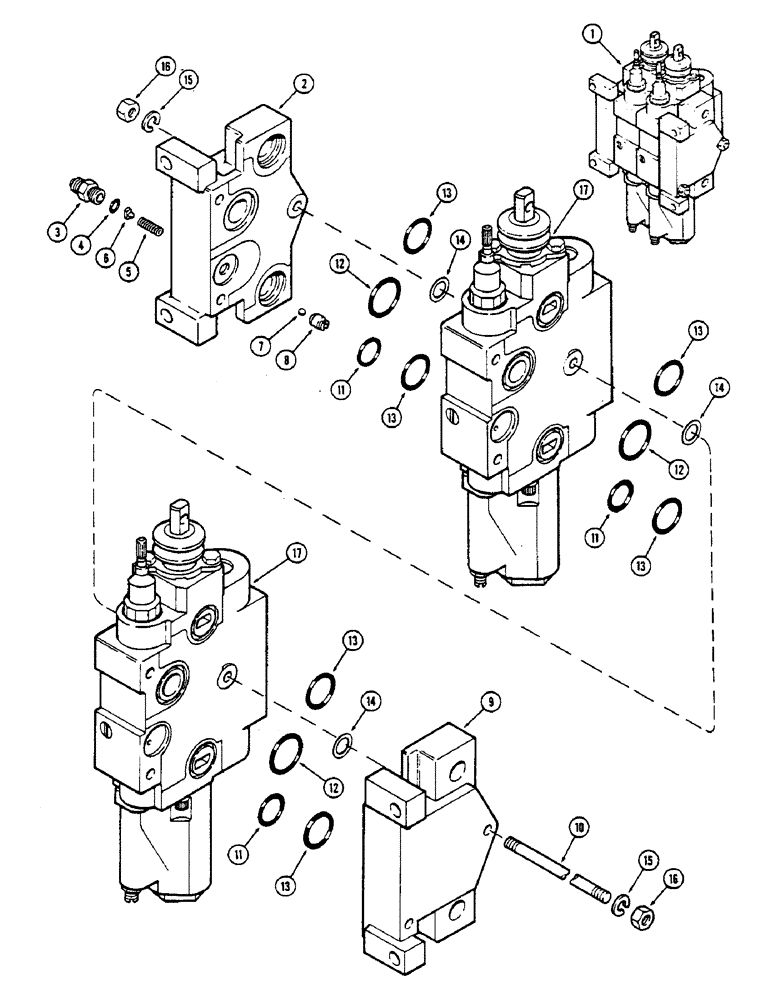

Запчасти Case IH 2390 (8-284) - REMOTE HYDRAULIC VALVE, TWO SECTION (08) - HYDRAULICS

1

A162211

VALVE

ASSEMBLY - remote, 2 spool (Replaces A141622), Includes: Ref. 2 - 17

1шт.

2

A47169

COVER

ASSEMBLY - with inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 9.65 x 2.03 mm)

1шт.

5

A47176

SPRING

- valve, 15/64" OD x 11/16" free length (5.84 x 17.53 MM)

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6.35 mm) 1/4" Dia

1шт.

8

A47202

SEAT

- valve, inlet

1шт.

9

A47113

COVER

- without inlet

1шт.

10

A147506

STUD

- 3/8" NC x 8"

3шт.

A47576

KIT

- seal, valve body, Includes: Ref. 11 - 14

1шт.

11

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4" x 1" x 1/8" (19.05 x 25.4 x 3.05 MM)

2шт.

12

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1" x 1-1/4" x 1/8" (25.4 x 31.75 x 3.05 MM)

2шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8" x 3/32" (23.88 x 28.45 x 2.29 MM)

1шт.

14

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

REF

INSTRUCTION

BODY ASSEMBLY - float (See Figure 8-286)

2шт.
