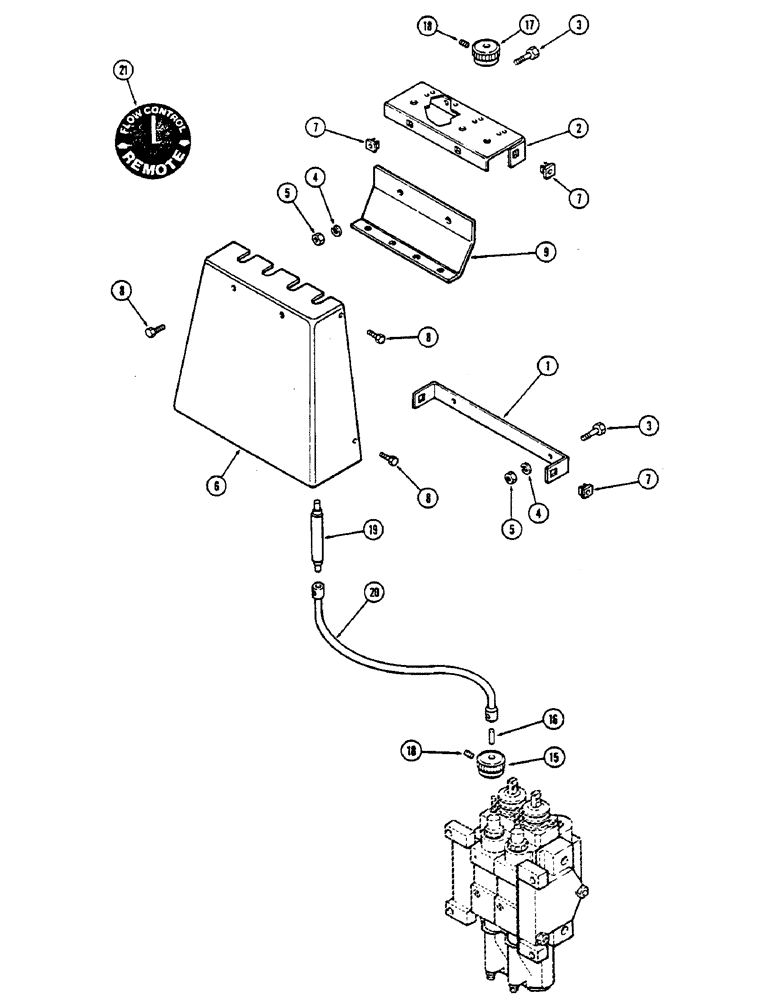

Запчасти Case IH 2390 (8-282) - REMOTE HYDRAULIC FLOW CONTROLS (08) - HYDRAULICS

A67475

KIT

- console, flow controls, Includes: Ref. 1 - 8

1шт.

1

A160314

KNOB

SUPPORT - lower, shroud

1шт.

2

A160256

SUPPORT

- shroud and controls

1шт.

3

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

4

192-2

WASHER - lock, 1/4"

4шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

6

A160259

PANEL

SHROUD - control console

1шт.

7

A67319

NUT

- plastic, Serial Range: shroud-support

1шт.

8

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - self tapping, 1/4 x 3/4" hex

6шт.

9

A160257

BRACKET

1шт.

A67476

KIT

- flow controls, Includes: Ref. 15 - 21

1шт.

15

A160814

KNOB

- valve, flow control

1шт.

16

A160815

PIN

- flexible shaft

2шт.

17

A145805

KNOB

- control

1шт.

18

178-1108

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, #10-32 x 5/8" socket head

2шт.

19

A147636

SHAFT

- control knob

1шт.

20

A149146

SHAFT

- flex (Includes set screws)

1шт.

21

321-4129

DECAL

- control knob

1шт.
