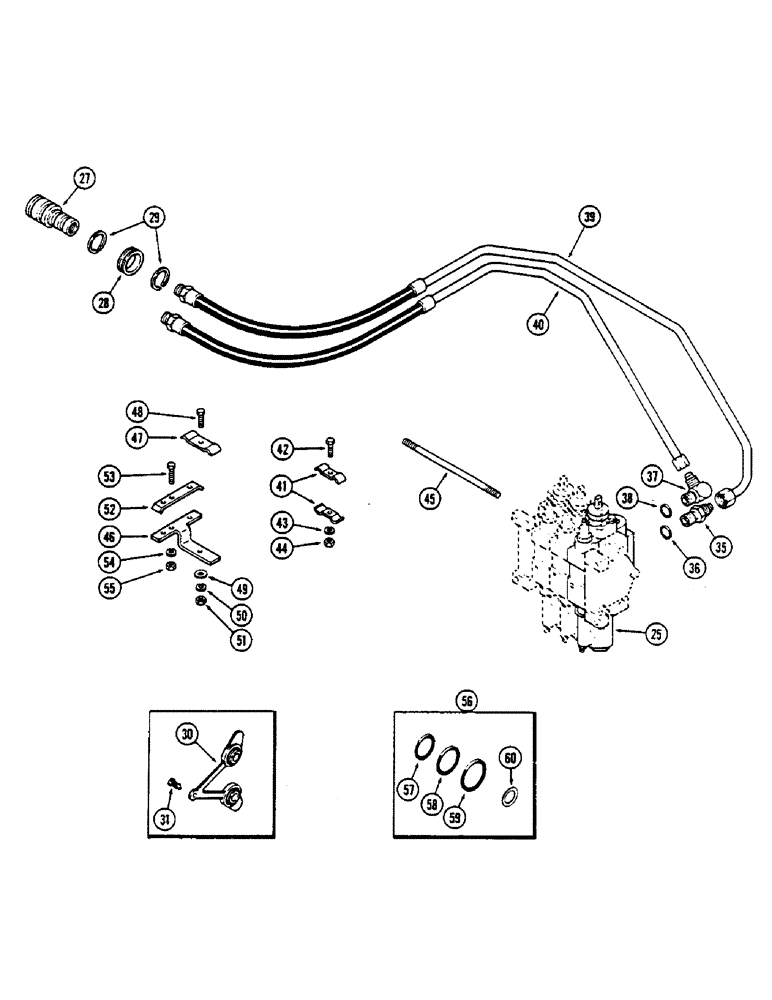

Запчасти Case IH 2390 (8-276) - REMOTE HYDRAULICS, NO. 3 CIRCUIT (08) - HYDRAULICS

A67388

ATTACHMENT

- remote hydraulic, No. 3 circuit (Continued from Figure 8-274), Includes: Ref. 25 - 60 and 1 - 22 on Figure 8-274

1шт.

25

REF

INSTRUCTION

BODY - remote valve (See Figure 8-286)

1шт.

27

A147888

BREAKER POINTS

COUPLING - remote hydraulic, female (Order A147741) (See Figure 8-292)

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Replaces A143300)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

39

A145905

HOSE

- #5 remote

1шт.

40

A145906

HOSE

- #6 remote

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147507

STUD

- valve mounting, 3/8" NC x 9-7/8"

3шт.

46

A147771

BRACKET

- tube clamp support

1шт.

47

A17542

CLAMP

- tube

1шт.

48

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

49

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

25-104

NUT,1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

53

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

25-104

NUT,1/4"-20, G5

2шт.

56

A47576

KIT

- valve body seal, Includes: Ref. 57 - 60

1шт.

57

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.05 MM)

1шт.

58

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.88 x 28.45 x 2.29 MM)

2шт.

59

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.05 MM)

5шт.

60

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.
