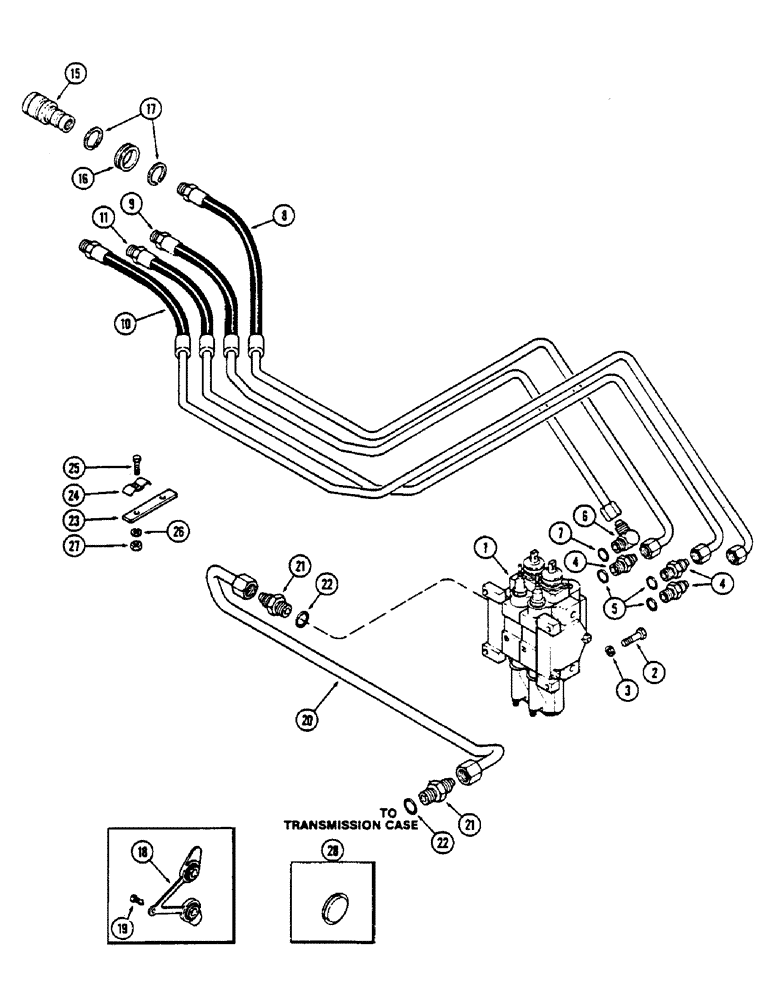

Запчасти Case IH 2390 (8-272) - REMOTE TUBES AND COUPLINGS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - remote (See Figure 8-284)

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

8

A145901

HOSE

- #1 remote

1шт.

9

A145902

HOSE

- #2 remote

1шт.

10

A145909

HOSE

- #3 remote

1шт.

11

A145904

HOSE

- #4 remote

1шт.

15

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-292)

4шт.

16

A139805

RETAINER

- coupling

4шт.

17

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling retainer

8шт.

18

A145468

PLUG

- remote coupling dust

2шт.

19

A162364

FASTENER

- dust plug to cab (Replaces A143300)

2шт.

20

A143847

TUBE

- remote, Serial Range: valve-sump

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tube, Incl. Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)

1шт.

23

A141174

SUPPORT

- tube clamp

1шт.

24

A63323

CLAMP

-, Serial Range: tubes-support

2шт.

25

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

353-590

PLUG,1 7/8"

- button, 1-7/8" recessed head (47.75 MM) (Rear platform holes)

4шт.
