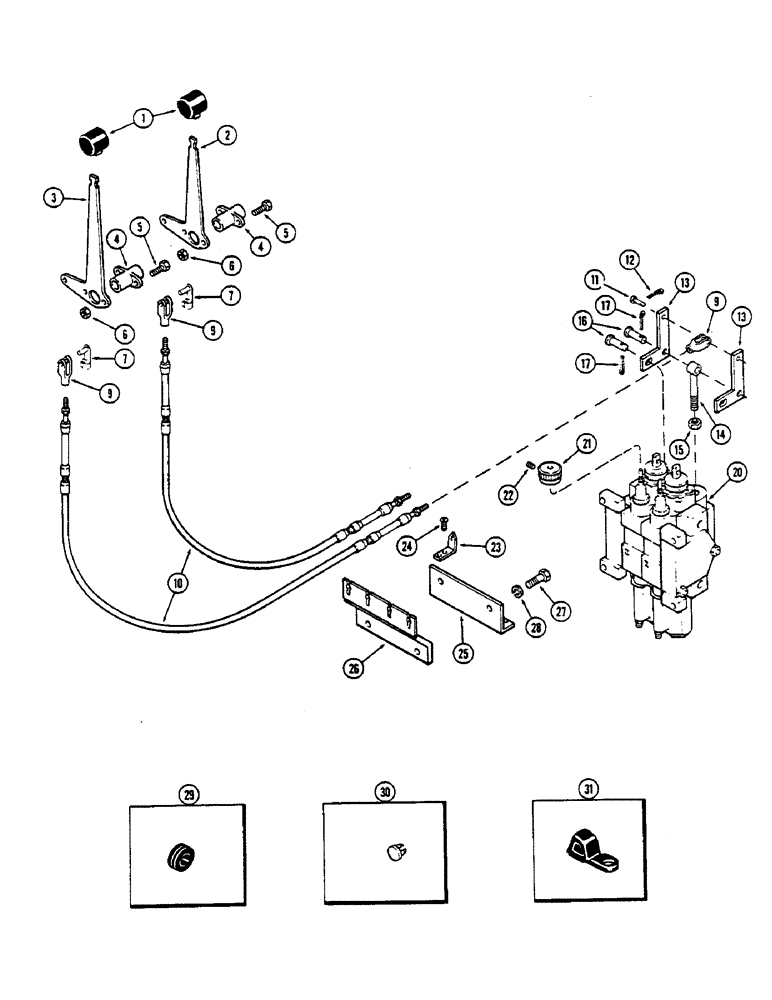

Запчасти Case IH 2390 (8-270) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

1

A139945

KNOB

- remote levers

2шт.

2

A141392

LEVER

- inner, 8-1/4" long (203.2 MM)

1шт.

3

A141393

LEVER

- outer, 10" long (254 MM)

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever (Replaces A141371)

2шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

7

A149683

PIN

- spring clevis, 3/16"

2шт.

9

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable

4шт.

10

A141402

CABLE

- remote control

2шт.

11

A67313

PIN

- bellcrank (Replaces A143069)

2шт.

12

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

13

A145598

LEVER

- bellcrank

4шт.

14

A145597

EYE

- bellcrank

2шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex jam

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

20

REF

INSTRUCTION

VALVE - remote (See Figure 8-284)

1шт.

21

A145805

KNOB

- flow control

2шт.

22

178-1108

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - #10-32 x 5/8" socket head cone point

2шт.

23

A64179

INDEX

- flow control

2шт.

24

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - #8 x 3/8" round head self-tapping

4шт.

25

A145804

BRACKET

- flow control index

1шт.

26

A145021

PLATE

- remote cable mounting

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

29

A141389

GROMMET

- cable (In cab floor)

1шт.

30

A67295

PLUG

- cable retaining (In mounting brackets)

1шт.

31

A141542

LEVER

TAB - float lockout (In console cover)

1шт.
