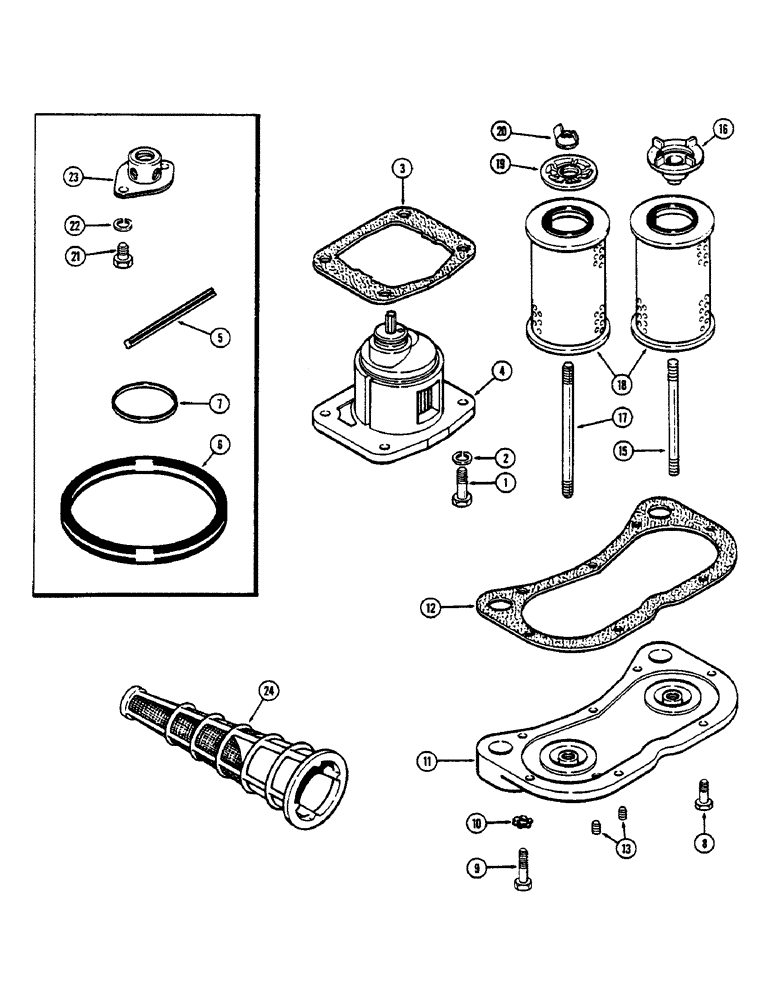

Запчасти Case IH 2390 (8-266) - HYDRAULICS, CHARGING PUMP, OIL FILTERS AND INLET FILTER (08) - HYDRAULICS

1

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

A141326

GASKET

- oil pump to torque tube

1шт.

4

REF

INSTRUCTION

PUMP - charging, hydraulic oil (See Figure 8-268)

1шт.

5

A63336

OIL SEAL

- oil pump to torque tube, 9/32 x 3-5/16" long (7.11 x 84.07 MM)

2шт.

6

A63337

OIL SEAL

- oil pump to torque tube

1шт.

7

A59001

O-RING,1.612" ID x 1.818" OD

- 1-13/32 x 1-34/64 x 3/32" (35.81 x 40.89 x 2.29 MM)

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- 3/8 x 2-1/8" NC hex (Grade 5)

2шт.

10

193-72

LOCK WASHER

- Shakeproof, 3/8" internal external

6шт.

11

A141288

MANIFOLD

- oil filter

1шт.

12

A141325

GASKET

- manifold

1шт.

13

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe, 1/4" square head

2шт.

15

A147924

STUD

- filter element

1шт.

16

A164424

VALVE

- filter by pass (Replaces A147919)

1шт.

17

A63342

STUD

- oil filter element

1шт.

18

A147925

FILTER, ELEMENT

ELEMENT - oil filter (Order A46403 kit, set of 2 and A141325 gasket)

2шт.

19

A149292

WASHER

- filter element

1шт.

20

129-400

WING NUT,1/2"-13

NUT - wing, 1/2"

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A63343

REGULATOR

- filter pressure

1шт.

24

A139052

FILTER

- inlet

1шт.
