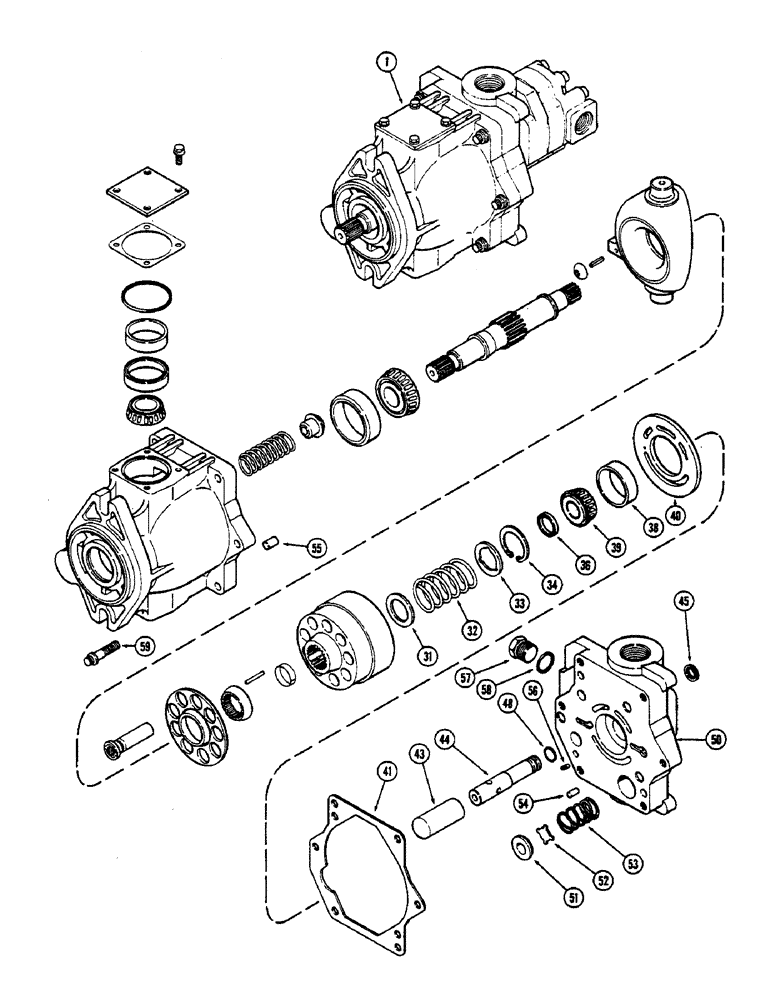

Запчасти Case IH 2390 (8-260) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A163167
PUMP
ASSEMBLY - gear and piston (Continued from Figure: 8-258), Includes: Ref. 31 - 59 and 1 - 30 on Figure 8-258
1шт.
31
A47299
WASHER
- spring, front
1шт.
32
A47298
SPRING
- cylinder block
1шт.
33
A47300
SPRING WASHER
WASHER - spring, rear
1шт.
34
D27833
SNAP RING,1.625", Int, #162
Ring, Snap, , cylinder block 1.625", Int, #162
1шт.
A47303
KIT
- spacer, rear bearing, Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.139" (3.53 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.142" (3.61 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.145" (3.68 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.148" (3.76 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.151" (3.84 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.154" (3.91 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.157" (3.99 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.160" (4.06 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.163" (4.14 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.166" (4.22 MM)
1шт.
36
NSS
NOT SOLD SEPARAT
SPACER - 0.169" (4.29 MM)
1шт.
38
FB14849
BEARING CUP
- bearing
1шт.
39
FB14850
ROLLER BEARING
CONE - bearing
1шт.
40
A47302
PLATE
- wafer
1шт.
41
A47280
GASKET,0.53mm Thk
- body (In A47567 kit, Figure 8-256)
1шт.
A47305
KIT
- piston rod, Includes: Ref. 43 - 45
1шт.
43
NSS
NOT SOLD SEPARAT
PISTON
1шт.
44
NSS
NOT SOLD SEPARAT
ROD
1шт.
45
A47340
RING
- snap, piston rod
1шт.
48
H756783
O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro
- 1/2 x 11/16 x 3/32" (12.7 x 17.45 x 2.36 MM) (In A47567 kit, Figure: 8-256)
1шт.
50
A47304
BLOCK
- valve
1шт.
51
A47306
PLUG
SEAT - valve block
1шт.
52
A47307
VALVE
- check
1шт.
53
A47308
SPRING
- valve block
1шт.
54
A47309
PIN
- 1/4 x 1/2" headless
1шт.
55
A47301
PIN
- housing to valve body
2шт.
56
221-1849
PLUG
- 1/8"-27 pipe
1шт.
57
86512512
PLUG,7/8" - 14 ORB
Valve body Hex Hd, 7/8"-14 ORB
1шт.
58
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- plug (In A47567 kit, Figure 8-256)
1шт.
59
166-47
12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8
SCREW - 3/8 x 1-1/2" NC 12 point head
6шт.
Выбрано товаров: 36
