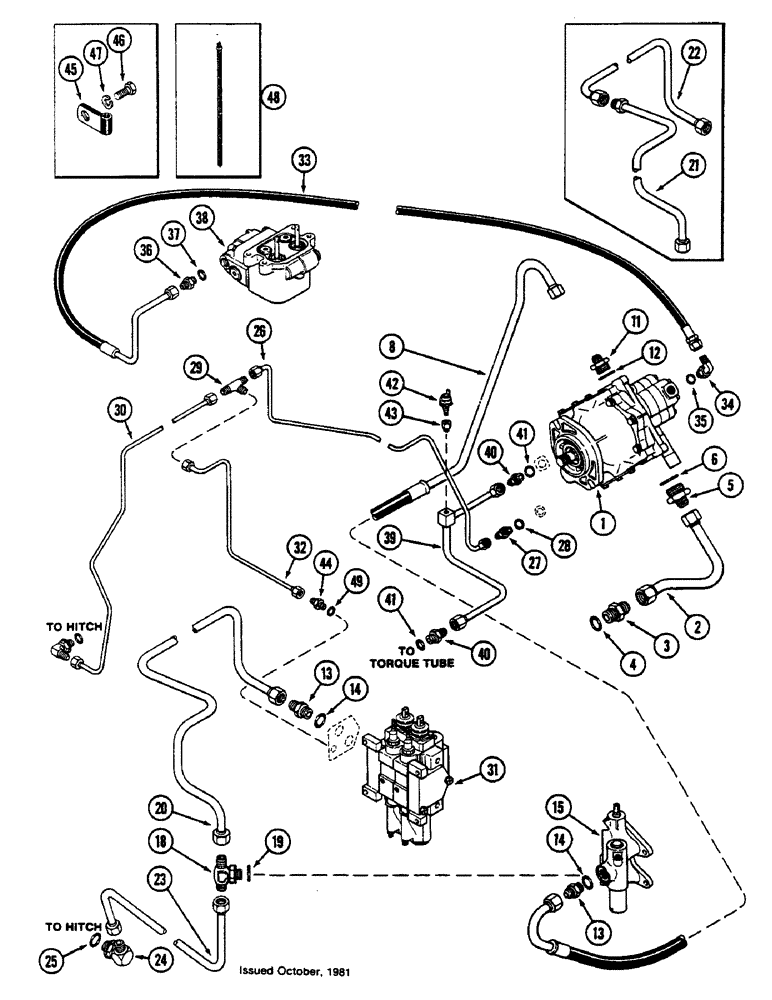

Запчасти Case IH 2390 (8-252) - HYDRAULICS, WITH HITCH, GEAR, PISTON PUMP AND HYDRAULIC LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP - gear and piston (See Figure 8-256)
1шт.
2
A147129
TUBE
- pump suction
1шт.
3
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR ASSEMBLY - tube, Incl. Ref. 4
1шт.
4
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1 x 11/64 x 7/64" (25.4 x 29.72 x 2.79 MM)
1шт.
5
A147128
CONNECTOR, ELEC
CONNECTOR ASSEMBLY - tube, Includes: Ref. 6
1шт.
6
218-5349
O-RING,1.364" ID x 1.504" OD x 0.07"
- 2-3/32 x 2-13/64 x 7/64" (53.18 x 55.96 x 2.79 MM)
1шт.
8
A162893
HOSE
TUBE - pump to regulator valve (Replaces A149897)
1шт.
11
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR ASSEMBLY - tube, Incl. Ref. 12
1шт.
12
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 x 1-5/32 x 7/64" (26.67 x 29.46 x 2.79 MM)
1шт.
13
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR ASSEMBLY - tube, Incl. Ref. 14
2шт.
14
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)
1шт.
15
REF
INSTRUCTION
VALVE - PTO regulator (See Figure 6-222)
1шт.
18
218-5185
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR - branch, Includes: Ref. 19
1шт.
19
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 x 1-13/32 x 1/8" (26.59 x 35.72 x 3.18 MM)
1шт.
20
REF
INSTRUCTION
TUBE - to remote valve (Order ref 21 and 22)
1шт.
21
A162498
TUBE
- tee to tube section (Replaces A147304)
1шт.
22
A162499
TUBE
- tube to remote valve section (Replaces A147303)
1шт.
23
A162496
TUBE
- regulator valve to hitch manifold (Replaces A139497)
1шт.
24
218-5123
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
ASSEMBLY - 90 degree adjustable, Includes: Ref. 25
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 1-3/64 x 1-5/32 x 7/64" (26.67 x 29.46 x 2.79 MM)
1шт.
26
A163871
TUBE
- pump, Serial Range: pilot-tee
1шт.
27
218-5352
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
CONNECTOR ASSEMBLY - tube, Includes: Ref. 28
1шт.
28
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 15.75 x 2.03 mm)
1шт.
29
218-593
TEE,9/16"-18, 37 Degree
- tube
1шт.
30
NSS
NOT SOLD SEPARAT
- tee to hitch manifold, pilot
1шт.
31
REF
INSTRUCTION
VALVE - remote (See Figure 8-284)
1шт.
32
A143338
TUBE
- remote valve, Serial Range: pilot-tee
1шт.
33
A147991
HOSE
- pump to brake valve (Order A164195)
1шт.
34
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Assy, Includes: Ref. 35 90º, 3/4"-16, 37º x 3/4"-16, O-Ring
1шт.
36
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - tube, Incl. Ref 37
1шт.
38
REF
INSTRUCTION
VALVE - power brake (See Figure 7-240)
1шт.
39
A147133
TUBE
- steering pump section
1шт.
40
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR ASSEMBLY - tube, Includes: Ref. 41
2шт.
41
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)
1шт.
42
A66737
SWITCH, PRESSURE
SWITCH - transmission filter pressure
1шт.
43
A161432
FITTING
SNUBBER - switch
1шт.
44
A47185
FITTING
CONNECTOR ASSEMBLY - tube
1шт.
45
49839
CLAMP
- tube, 3/8" (9.65 MM)
2шт.
46
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
47
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)
1шт.
48
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - nylon
1шт.
49
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 9.65 x 2.03 mm)
1шт.
35
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)
1шт.
37
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)
1шт.
Выбрано товаров: 44
