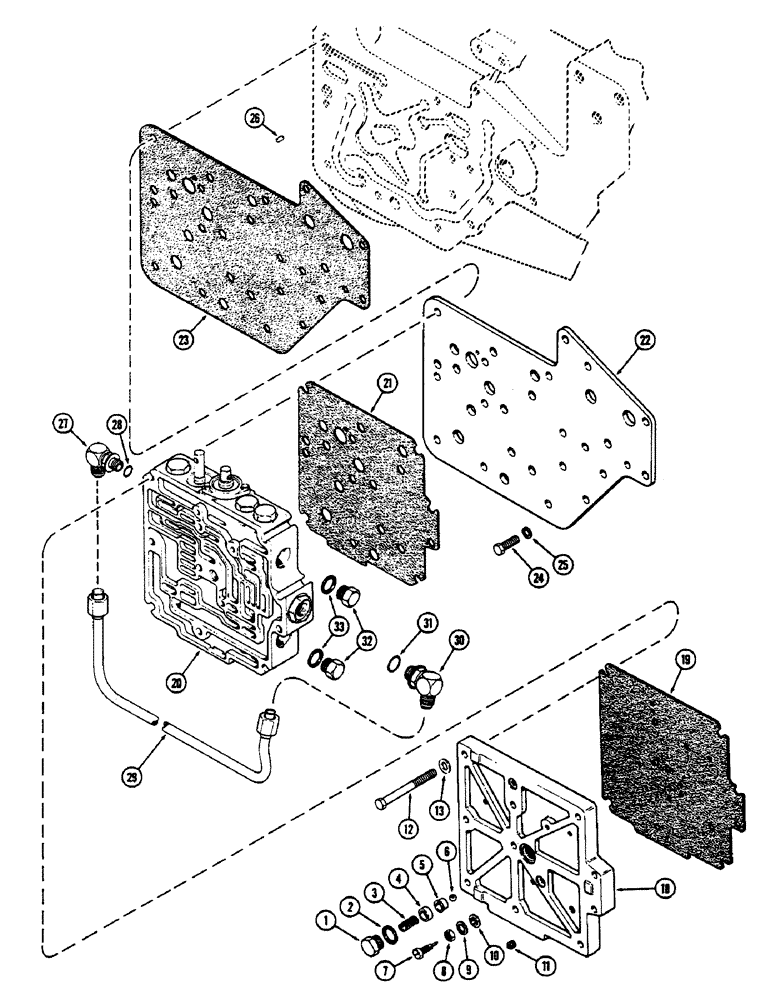

Запчасти Case IH 2390 (8-248) - HYDRAULICS, TRANSMISSION CONTROL VALVE AND ATTACHING PARTS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A62588
PLUG
- detent
1шт.
3
A61696
SPRING
- detent ball, 1-1/16" (26.92 MM) free length
1шт.
4
A62107
SPACER
- detent
1шт.
5
A59062
SLEEVE
- detent
1шт.
6
211-12
BALL,7/16 Dia
- detent, 7/16" diameter chrome steel (11.18 MM)
1шт.
7
A136916
NEEDLE
- retard orifice
2шт.
8
425-154
JAM NUT,Jam, 1/4"-28, G5
2шт.
10
A59074
SEAL
- thread, 1/4" ID (6.35 MM)
2шт.
11
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, 1/8" square head
5шт.
12
113-252
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
10шт.
13
A50820
WASHER
- valve cover to transmission case
10шт.
18
A155488
COVER
- transmission control valve (Replaces A151421)
1шт.
19
A151615
GASKET
- valve to valve cover
1шт.
20
REF
INSTRUCTION
VALVE - transmission control (See Figure 8-250)
1шт.
21
A66736
GASKET
- valve to manifold plate
1шт.
22
A66771
PLATE
- manifold
1шт.
23
A66112
GASKET
- manifold to torque tube
1шт.
24
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
2шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
A63087
NEEDLE ROLLER
PIN - dowel, 3/16 x 3/4"
1шт.
27
A63295
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring
ASSEMBLY - 90 degree, Includes: Ref. 28
1шт.
28
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 1.98 mm)
1шт.
29
A64332
TUBE
- pilot, reverse lock-out
1шт.
30
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Assy, Includes: Ref. 31 90º, 3/4"-16, 37º x 3/4"-16, O-Ring
1шт.
32
A62564
PLUG
ASSEMBLY - (C1) and (C4) ports, Includes: Ref. 33
2шт.
2
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)
1шт.
31
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)
1шт.
33
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)
1шт.
Выбрано товаров: 29
