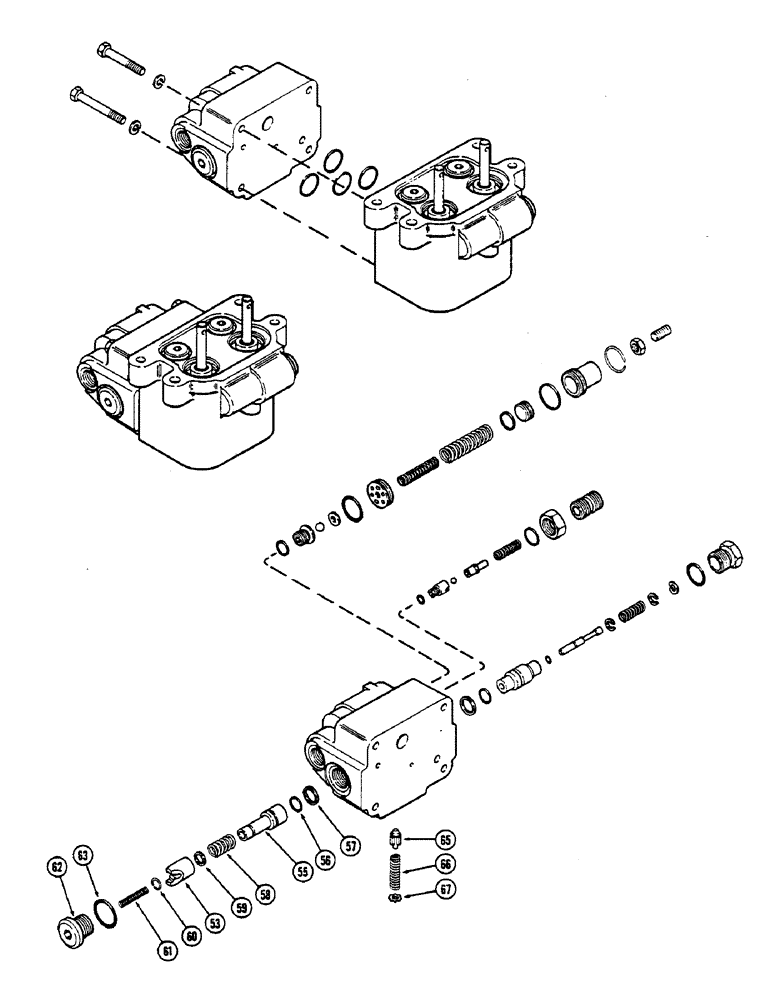

Запчасти Case IH 2390 (7-242) - POWER BRAKE VALVE (07) - BRAKES

G103198

VALVE

ASSEMBLY - power brake (Continued from Figure 7-240), Includes: Ref. 53 - 67 and 2 - 51 on Figure 7-240

1шт.

G101143

COVER

ASSEMBLY - valve (Continued from Figure 7-240), Includes: Ref. 53 - 60

1шт.

G101095

VALVE

PRESSURE RELEASE ASSEMBLY, Includes: Ref. 53 - 60

1шт.

53

G100793

SPOOL

- pressure release

1шт.

F101096

PISTON ASSEMBLY - pressure release, Includes: Ref. 55 - 57

1шт.

55

NSS

NOT SOLD SEPARAT

PISTON - pressure release

1шт.

56

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.75 x 1.52 MM) (Order D26872)

1шт.

57

G100797

RING

SEAL - ring, 11/16 x 3/4 x 1/16" (17.53 x 19.05 x 1.52 MM)

1шт.

58

G100795

SPRING

- piston return, 5/8" OD x 1-5/32" free length (15.75 x 29.46 MM)

1шт.

59

G102104

WASHER

- orifice, 7/16 x 9/16 x 3/64" (11.18 x 14.22 x 1.27 MM)

1шт.

60

G100792

RING

- retaining

1шт.

61

G100794

SPRING

- piston pressure, 1/4" OD x 1-1/2" free length (6.35 x 38.1 MM)

1шт.

62

86625138

PLUG,7/18" - 14

Assy, Piston, Includes Ref. 63 Hex Soc, 7/8"-14 ORB

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32" (19.05 x 15.75 x 2.29 MM)

1шт.

65

G101106

VALVE POPPET

POPPET - low pressure sump

1шт.

66

G101155

SPRING

- low pressure sump, 3/8" OD x 1-13/32" free length (9.65 x 35.81 MM)

1шт.

67

A58439

RETAINER

- spring, low pressure sump

1шт.
