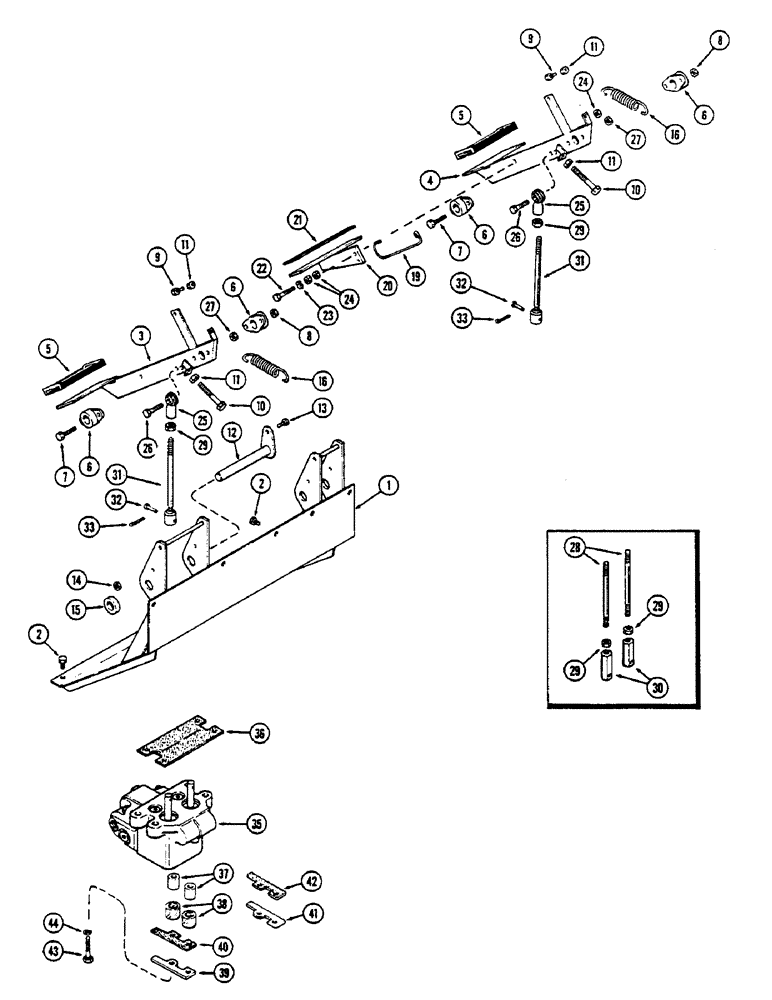

Запчасти Case IH 2390 (7-230) - BRAKE PEDALS AND VALVE (07) - BRAKES

1

A143559

BRACKET

COVER - brake and clutch

1шт.

2

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - 3/8 x 5/8" NC hex self thread

8шт.

3

A147562

PEDAL

- brake, RH

1шт.

4

A147563

PEDAL

- brake, LH

1шт.

5

F9197

PAD

TREAD - non-slip, pedal

2шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal

4шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

8

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

10

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

(Lower stop) Hex, 5/16"-18 x 2 3/4", G5

2шт.

11

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - 5/16" NC hex lock

4шт.

12

A59452

SHAFT

- pedal pivot

1шт.

13

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

15

A149212

BUSHING

SPACER - pedal bearings

1шт.

16

A160874

SPRING

- pedal return

2шт.

19

A147975

SPRING

- brake interlock pedal

1шт.

20

A147500

PEDAL

- interlock

1шт.

21

A143553

TREAD

- non-slip, pedal

1шт.

22

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

23

A10454

WAVE WASHER

- spring, interlock pedal

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

A67310

ROD

END - female, 3/8" (9.65 MM)

2шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

28

A67314

ROD

- brake (Order Ref 32)

2шт.

29

129-123

NUT,3/8"-24, G5

4шт.

30

A67315

CONNECTOR, ELEC

CONNECTOR - brake rod to valve (Order Ref 32)

2шт.

31

A67313

PIN

- clevis, brake connector

2шт.

32

A160653

ROD

ASSEMBLY - brake (Replaces A67314 and A67315)

2шт.

33

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (1.59 x 19.05 mm) 1/16" x 3/4"

2шт.

35

REF

INSTRUCTION

VALVE - brake (See page 7-240)

1шт.

36

A143549

GASKET

- valve to cab platform

1шт.

37

A143554

BUSHING

SPACER - valve to cab platform

4шт.

38

A149954

GASKET

- valve spacer

4шт.

39

A149944

PLATE

ASSEMBLY - valve retaining, RH, Includes: Ref. 40

1шт.

40

A149943

GASKET

- plate

1шт.

41

A149946

PLATE

ASSEMBLY - valve retaining, LH, Includes: Ref. 42

1шт.

42

A149945

GASKET

- plate

1шт.

43

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
