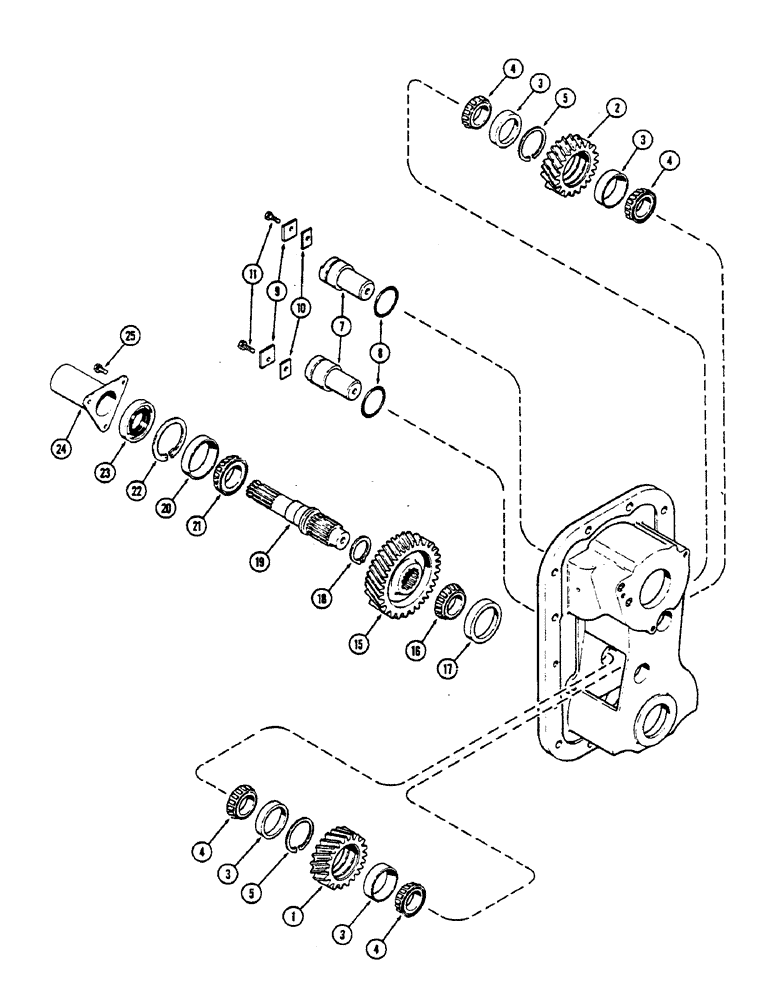

Запчасти Case IH 2390 (6-228) - PTO IDLERS AND OUTPUT SHAFT (06) - POWER TRAIN

1

A151039

GEAR

- PTO idler, LH (31 teeth)

1шт.

2

A151038

GEAR

- PTO idler, RH (31 teeth) (With identification groove)

1шт.

3

D53762

BEARING CUP,2.892" OD x 0.62"

CUP - bearing, idler

4шт.

4

D53766

TAPERED BEARING,1.7812" ID x 0.78"

CONE - bearing, idler

4шт.

5

A31255

SNAP RING,2.875", Int, #287

Ring, Snap, , idler brg 2.875", Int, #287

2шт.

7

A151037

PIN

- PTO idler gear

2шт.

8

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 x 2-1/4 x 1/8" (50.8 x 57.15 x 3.05 MM)

2шт.

9

A136233

RETAINER

- idler pins

2шт.

10

A136315

SHIM,.0050" Thk

Retainer (0.13mm) .0050" Thk

1шт.

10

A136316

SHIM,.0070" Thk

Retainer (0.18mm) .0070" Thk

1шт.

10

A136317

SHIM,.010" Thk

Retainer (0.25 mm) .010" Thk

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

A138186

GEAR

- PTO output (44 external and 32 internal teeth)

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, outlet shaft rear, 3-11/32" OD x 11/16" wide (84.84 x 17.53 MM)

1шт.

17

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, output shaft rear, 1-9/16" ID (39.62 MM)

1шт.

18

A142923

SNAP RING,#206, Ext

Ring, Snap, , output gear #206, Ext

1шт.

19

A148833

SHAFT

- output

1шт.

20

A28168

CUP

- bearing, output shaft front, 3-1/2" OD x 21/32" wide (88.9 x 16.76 MM)

1шт.

21

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE - bearing, output shaft front, 1-7/8" ID (47.75 MM)

1шт.

22

A151628

RING

- snap, output shaft retaining, 0.074" (1.88 MM)

1шт.

22

A151471

RING

- snap, output shaft retaining, 0.078" (1.98 MM)

1шт.

22

A151470

RING

- snap, output shaft retaining, 0.082" (2.08 MM)

1шт.

22

A151235

RING

- snap, output shaft retaining, 0.086" (2.18 MM)

1шт.

22

A142636

RING

- snap, output shaft retaining, 0.090" (2.29 MM)

1шт.

22

A142635

RING

- snap, output shaft retaining, 0.094" (2.39 MM)

1шт.

22

A142634

RING

- snap, output shaft retaining, 0.098" (2.49 MM)

1шт.

22

A142637

RING

- snap, output shaft retaining, 0.102" (2.59 MM)

1шт.

22

A148193

RING

- snap, output shaft retaining, 0.108" (2.74 MM)

1шт.

22

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , output shaft, 0.109" (2.77 MM) 3.50", Int, #350

1шт.

23

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft

1шт.

24

A142641

GUARD

- PTO output shaft

1шт.

25

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.
