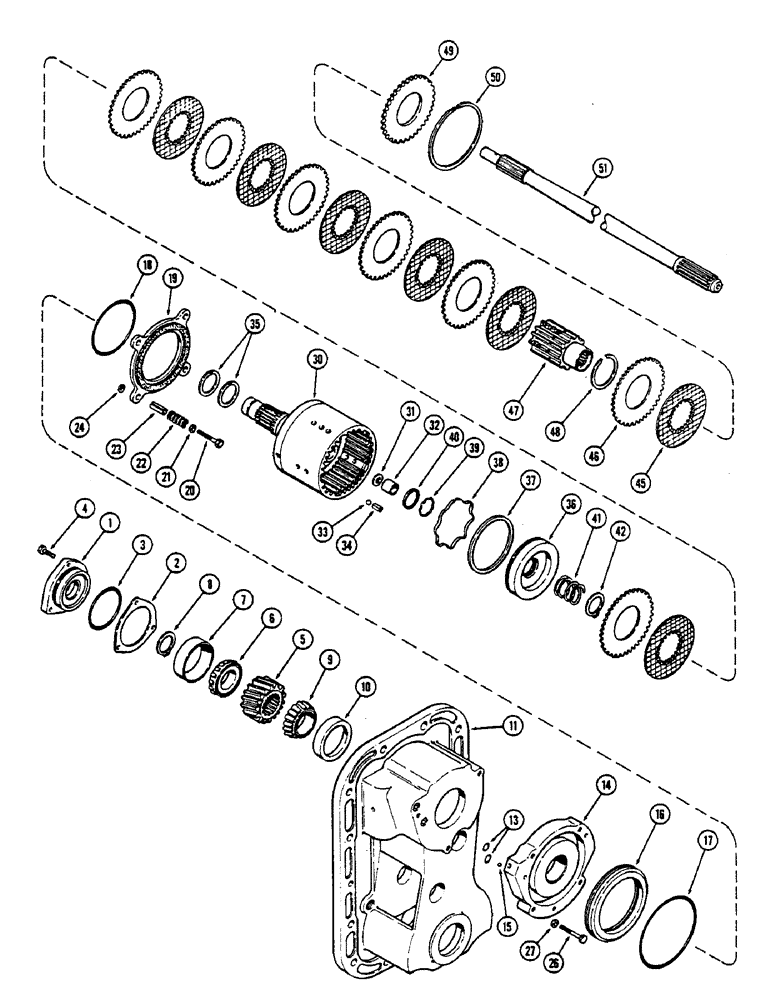

Запчасти Case IH 2390 (6-226) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

A142590

COVER

- lubrication oil inlet

1шт.

2

A144020

SHIM

- cover, 0.005" (0.13 MM)

1шт.

2

A144021

SHIM

- cover, 0.007" (0.18 MM)

1шт.

2

A144022

SHIM

- cover, 0.010" (0.25 MM)

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- 3-1/4 x 3-1/2 x 1/8" (82.55 x 88.9 x 3.05 MM)

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

5

A138183

GEAR

- PTO, input

1шт.

6

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, outer 1-1/2" ID (38.1 MM)

1шт.

7

T27784

CUP

- bearing, outer 3-1/2" OD x 27/32" wide (88.9 x 21.34 MM)

1шт.

8

A144595

SNAP RING,#156, Ext

Ring, Snap, , brg #156, Ext

1шт.

9

A32764

ROLLER BEARING,1.875" ID x 1"

CONE - bearing, inner 1-7/8" ID (47.75 MM)

1шт.

10

A32763

CUP

- bearing, inner 3-1/2" OD x 3/4" wide (88.9 x 19.05 MM)

1шт.

11

A153698

HOUSING

- PTO

1шт.

13

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 19/64 x 7/16 x 1/16" (7.62 x 11.18 x 1.52 MM) square

2шт.

14

A138176

CARRIER

- PTO brake piston

1шт.

15

211-9

BALL,5/16" Dia

- 7/16" diameter steel (11.11 MM)

1шт.

16

A150236

PISTON

- brake, PTO (Replaces A142747)

1шт.

17

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- 6-1/4 x 6-1/2 x 1/8" (158.75 x 165.1 x 3.05 MM)

1шт.

18

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- 4-3/4 x 5 x 1/8" (120.65 x 127.00 x 3.05 MM)

1шт.

19

A142910

BRAKE

- PTO

1шт.

20

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- 5/16 x 2-1/4" NC hex (Grade 8)

4шт.

21

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

4шт.

22

A152184

SPRING

- brake return, 1-1/2" free length (38.1 MM)

4шт.

23

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

4шт.

24

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- PTO brake return

4шт.

26

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- 3/8 x 2-1/4" NC hex (Grade 8)

3шт.

27

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 27/64 x 3/4 x 1/32" (10.67 x 19.05 x 0.76 MM)

3шт.

30

A150675

CARRIER

ASSEMBLY - PTO clutch

1шт.

31

A63265

WASHER

- thrust, input shaft, Includes: Ref. 31 and 32

1шт.

32

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- input shaft

1шт.

33

211-8

BALL,9/32" Dia

- carrier (7.14 mm) 9/32" Dia

1шт.

34

138-222

LOCK PIN,5/16" x 1/2", Slotted

Pin, (7.94 x 12.7 mm) 5/16" x 1/2", Slotted

1шт.

35

A59005

SEAL

RING - seal, 2-7/32 x 2-5/16 x 3/32" (56.39 x 57.98 x 2.29 MM)

2шт.

36

A67155

PISTON

- PTO clutch

1шт.

37

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, external

1шт.

38

A50626

SPRING

- piston seal, external (Order G102094)

1шт.

39

A63258

SEAL

- piston, internal

1шт.

40

A63259

SPRING

- piston seal, internal

1шт.

41

A63260

SPRING

- piston return, 1-3/4" (44.45 MM) free length

1шт.

42

T37909

SNAP RING,#150, Ext

Ring, Snap, , spring #150, Ext

1шт.

45

A67130

PLATE

- clutch, friction

7шт.

46

A67156

PLATE

- clutch, steel

7шт.

47

A146020

HUB

- PTO clutch

1шт.

48

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, clutch hub

1шт.

49

A50643

PLATE

- clutch backup

1шт.

50

A50639

RING

- snap, backup plate retaining

1шт.

51

A152396

SHAFT

- PTO input, rear

1шт.
